1. Proizvod je gotovview
The Progress Lighting Delayne pendant light (Model P500358-109) features a sophisticated design with a softly curved metal framework encasing an opal glass globe. This fixture provides diffused light, creating an ambient glow suitable for various indoor settings.

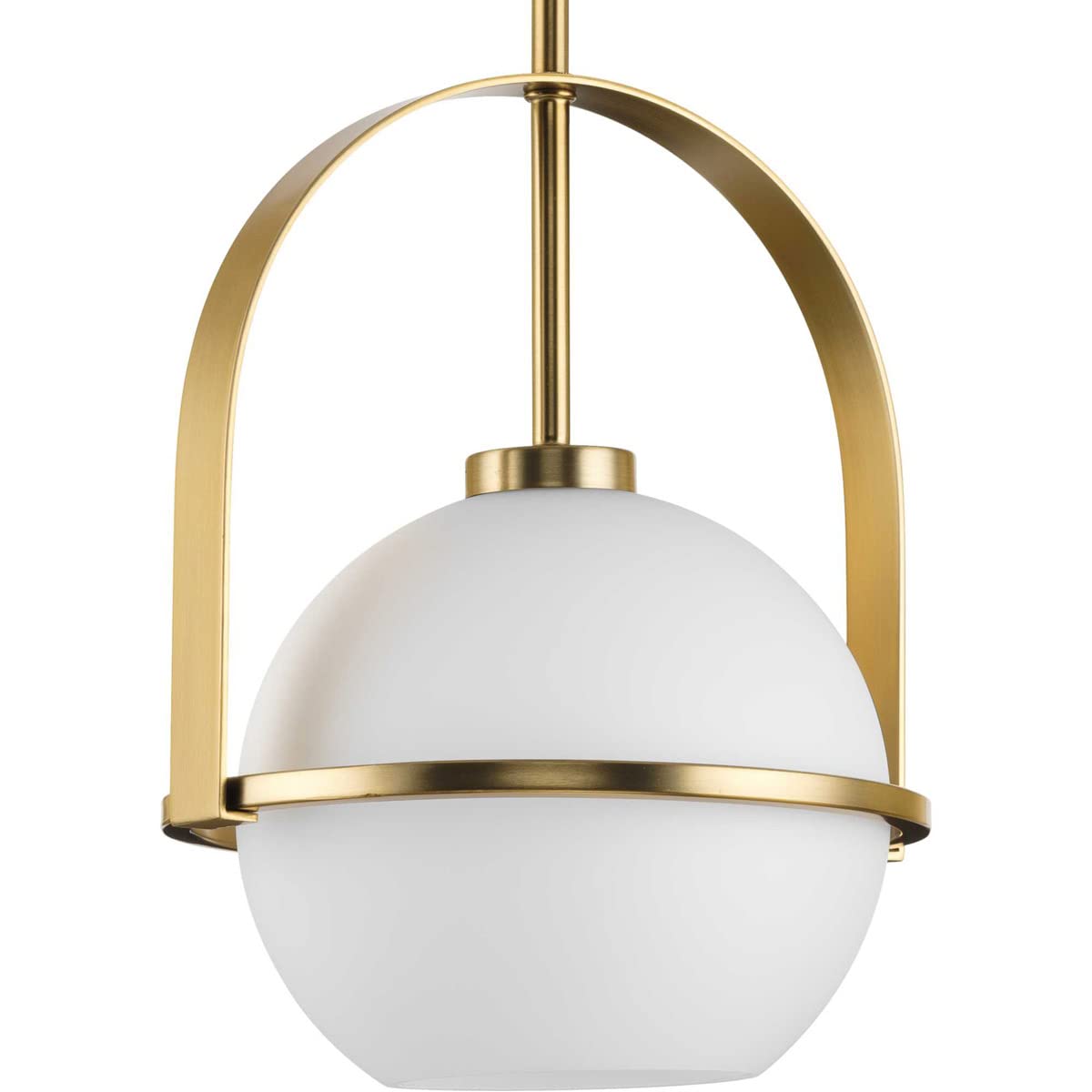

Image 1: Progress Lighting Delayne Pendant Light, Medium Gold finish.
2. Sigurnosne informacije
Molimo vas da pročitate i razumjete sva uputstva prije početka instalacije. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili drugih povreda koje mogu biti fatalne ili uzrokovati materijalnu štetu.
- Uvijek isključite napajanje na glavnom prekidaču prije instalacije ili održavanja.
- Posavjetujte se s kvalificiranim električarem ako niste sigurni u proces instalacije.
- Koristite samo preporučenu vrstu i snagu sijalicetage kako biste izbjegli pregrijavanje.
- Ne modificirajte uređaj ni na koji način.
- Keep combustible materials away from the light fixture.
3. Sadržaj paketa
Prije nego što nastavite s instalacijom, provjerite da li su sve komponente prisutne:
- Pendant Light Fixture (Model P500358-109)
- Montažna nadstrešnica
- Down Rods (one 6-inch, four 12-inch)
- Chain (9 inches, with 6 links for sloped ceilings)
- Etched Opal Glass Globe
- Mounting Hardware Kit (screws, wire nuts, etc.)
- Instalacijski list
Image 2: Included stems and chain for adjustable hanging height and sloped ceiling installation.
4. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | Progres Lighting |
| Broj modela | P500358-109 |
| Dimenzije (D x Š x V) | 9.37" x 9.37" x 12.37" |
| Težina artikla | 4.9 funte |
| Materijal | Legirani čelik, staklo |
| Tip završetka | Brushed Bronze (Gold) |
| Shade Material | Etched Opal Glass |
| Izvor svjetlosti | Inkandescentna (kompatibilna sa LED) |
| Broj izvora svjetlosti | 1 |
| Bulb Base | E26 (srednja baza) |
| Max Wattage | 100 vati |
| Voltage | 120 volti |
| Vrsta montaže | Ceiling Mount (Semi Flush Mount) |
| Unutrašnja/vanjska upotreba | Indoor |
| Garancija | 1 godine ograničene garancije |
Image 3: Product dimensions of the Delayne pendant light.
5. Postavljanje i instalacija
5.1 Prije nego počnete
- Turn off electrical power at the main fuse box or circuit breaker.
- Gather necessary tools: screwdriver, wire strippers, electrical tape, safety glasses.
- Unpack all components and inspect for damage.
5.2 Montaža učvršćenja
- Attach the mounting bracket to the junction box in the ceiling using the provided screws.
- Determine the desired hanging height. Assemble the appropriate combination of 6-inch and 12-inch down rods. For sloped ceilings, use the chain links as needed to ensure the fixture hangs straight.
- Thread the fixture wires through the assembled down rods and canopy.
5.3 Upute za ožičenje
- Spojite crnu žicu rasvjetnog tijela na crnu (aktivnu) žicu kuće pomoću žičane matice.
- Spojite bijelu žicu rasvjetnog tijela s bijelom (neutralnom) žicom kuće pomoću žičane matice.
- Connect the fixture's ground wire to the house's ground wire (or bare copper) and the mounting bracket's ground screw.
- Pažljivo ugurajte sve žice u razvodnu kutiju.
5.4 Securing the Canopy and Glass Globe
- Secure the canopy to the mounting bracket with the provided screws.
- Carefully attach the etched opal glass globe to the fixture according to the detailed instructions in the included installation sheet.
5.5 Ugradnja sijalice
This fixture requires one E26 (Medium Base) bulb, with a maximum wattage of 100W. LED or incandescent bulbs can be used. A frosted A19 light bulb is recommended for optimal light diffusion.
Image 4: Bulb information (E26 base, A19 shape) and dimming compatibility.
- Ensure power is off before installing the bulb.
- Screw the E26 base bulb into the socket until snug. Do not overtighten.
5.6 Pendant Spacing and Hanging Tips (Video)
Video 1: This video from Progress Lighting provides general tips for pendant light spacing and hanging, which can be helpful during installation.
6. Uputstvo za upotrebu
Once installed, restore power at the main circuit breaker. The pendant light can be operated using a standard wall switch. This fixture is dimmable when used with a compatible wall dimmer and dimmable light bulbs.
7. Održavanje
7.1 Čišćenje
- Ensure power is off and the fixture is cool before cleaning.
- Wipe the metal parts with a soft, dry cloth.
- Clean the glass globe with a soft cloth dampOčistite blagim sredstvom za čišćenje stakla. Izbjegavajte abrazivna sredstva za čišćenje.
7.2 Zamjena sijalice
- Isključite struju na prekidaču.
- Ostavite sijalicu da se potpuno ohladi prije dodirivanja.
- Carefully unscrew the old bulb and replace it with a new E26 (Medium Base) bulb, not exceeding 100W.
8. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Svjetlo se ne pali | Nema struje u rasvjetnom tijelu, labavo ožičenje, neispravna sijalica, isključen osigurač. | Check circuit breaker, ensure all wire connections are secure, replace bulb, verify power supply. |
| Svetlo treperi | Loose bulb, incompatible dimmer, loose wiring. | Tighten bulb, ensure dimmer is compatible with bulb type, check wire connections. |
| Sijalica brzo pregori | Netačan wattage bulb, poor ventilation, voltage fluktuacije. | Koristite ispravan wattage bulb (max 100W), ensure proper air circulation around fixture. |
9. Informacije o garanciji
Ova rasvjetna tijela Progress Lighting su pokrivena 1 godine ograničene garancije from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please contact Progress Lighting customer service.
10. Podrška
For technical assistance, missing parts, or customer service inquiries, please visit the official Progress Lighting website or contact their customer support line. Refer to the contact information provided on the product packaging or the Progress Lighting website.
