hOmeLabs 25-Bottle Dual-Zone Wine Cooler

1. Uvod

Thank you for choosing the hOmeLabs 25-Bottle Dual-Zone Wine Cooler. This appliance is designed to store and chill up to 25 standard 750ml wine bottles at optimal temperatures, ensuring your wines are perfectly preserved and ready for enjoyment. It features two independent temperature zones, a digital control panel, and a reversible door for flexible placement.

Please read this manual thoroughly before installation and operation to ensure proper use, maintenance, and safety. Keep this manual for future reference.

2. Sigurnosne informacije

Your safety and the safety of others are very important. Please follow all basic safety precautions when using this appliance.

• Ovaj aparat je namenjen isključivo za upotrebu u domaćinstvu.
• Nemojte skladištiti eksplozivne materije kao što su aerosolne limenke sa zapaljivim gorivom u ovom uređaju.
• Uvjerite se da je uređaj pravilno uzemljen.
• Isključite uređaj iz struje prije čišćenja ili bilo kakvog održavanja.
• Do not damage the refrigerant circuit. This unit uses R-290 refrigerant.
• Otvore za ventilaciju držite dalje od prepreka.
• This appliance is equipped with a child safety lock and keys. Always secure the door to prevent children from becoming trapped inside.
• A door beeper will sound if the door is left open for two or more minutes.
• Prijedlog 65 Upozorenje: Ovaj proizvod može sadržavati hemikalije za koje država Kalifornija zna da izazivaju rak i urođene nedostatke ili drugu reproduktivnu štetu.

3. Proizvod je gotovview

3.1 Komponente i karakteristike

• Kapacitet: Stores up to 25 standard 750ml wine bottles.
• Dvozonsko hlađenje: Independent temperature control for upper and lower zones.
• Digitalna kontrolna tabla: Easy temperature setting and monitoring.
• Reverzibilna vrata: Allows for left or right-hand opening.
• Sigurnosna brava: Integrated lock with keys for secure storage.
• Beech Wood Shelves: Removable shelves for organized storage.
• Dvoslojna vrata od kaljenog stakla: Blocks UV light to protect wine.
• Unutrašnja LED rasvjeta: White LED light for visibility.
• Alarm na vratima: Alerts if the door is left ajar.

3.2 Dimenzije proizvoda

The wine cooler measures approximately 14.96 inches (W) x 23.23 inches (D) x 34.44 inches (H). Please refer to Image 1 for a visual representation of the dimensions.

3.3 Dual-Zone Cooling System

This wine cooler features two distinct temperature zones to accommodate different wine types:

• gornja zona: 41°F to 57°F (5°C to 14°C) - Ideal for white and rosé wines.
• Donja zona: 50°F to 64°F (10°C to 18°C) - Ideal for red wines.

The cooler utilizes an efficient compressor-based cooling system with R-290 refrigerant to maintain stable temperatures.

3.4 Digitalna kontrolna tabla

The intuitive digital control panel allows for precise temperature adjustments and monitoring for both zones. It also includes controls for the interior LED light and a standby function. Refer to Image 3 for button identification.

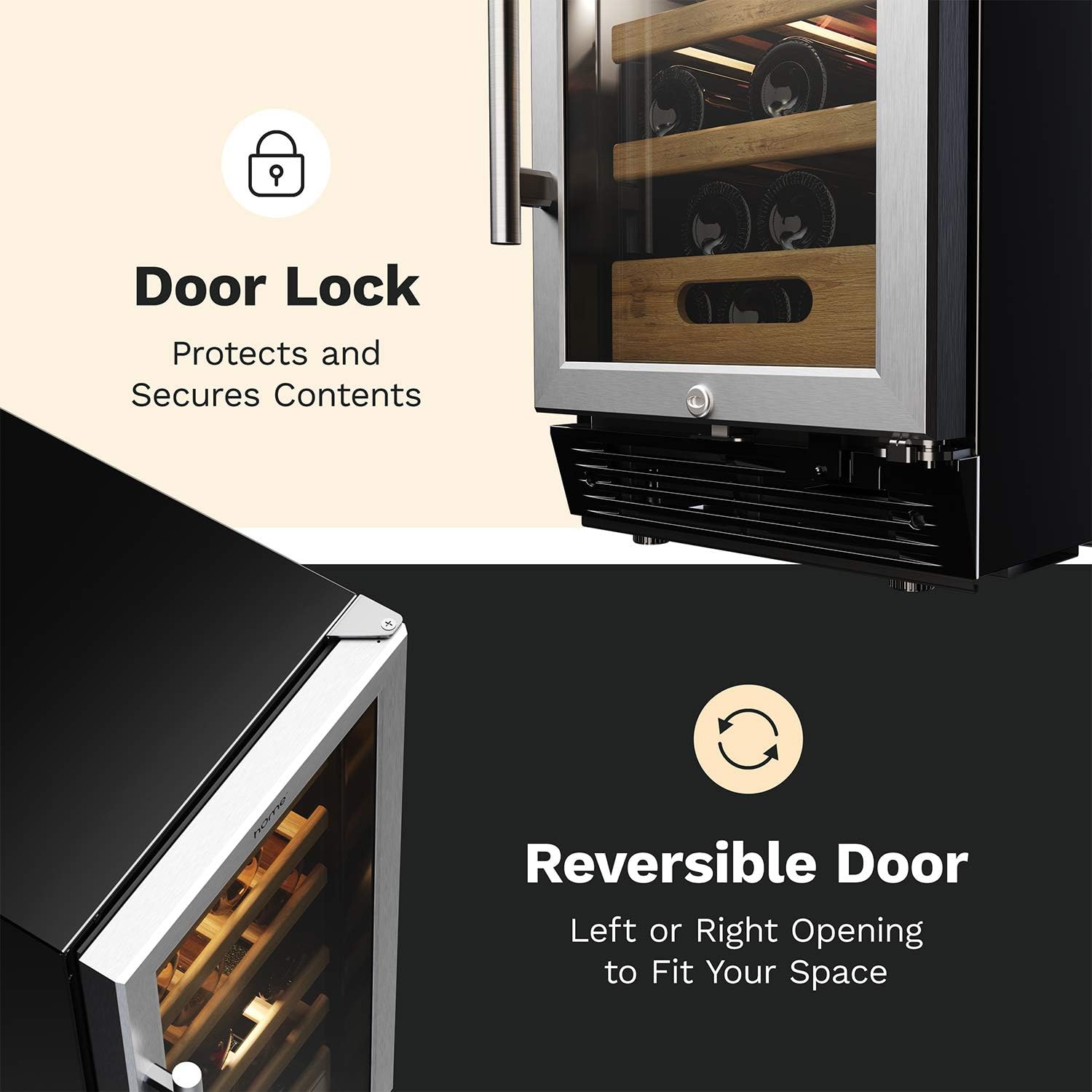

3.5 Door Features

The cooler features a stainless steel door with double-layered tempered glass to protect your wine from harmful UV light. It is also equipped with a security lock and a reversible door swing mechanism for installation flexibility. See Image 4 for details.

3.6 Unutrašnje osvjetljenje

The interior is illuminated with soft white LED lighting, allowing you to easily view and select your wine collection without opening the door unnecessarily. The light can be controlled via the digital panel. Refer to Image 5.

4. Podešavanje

4.1 Raspakivanje

1. Uklonite sav materijal za pakovanje, uključujući pjenastu podlogu i ljepljivu traku.
2. Inspect the cooler for any damage during transit. Report any damage to your retailer immediately.
3. Clean the interior and exterior of the unit with a soft cloth and mild detergent before use.

4.2 Postavljanje

• This is a freestanding unit. Do not recess or build it into cabinetry.
• Place the cooler on a flat, level, and sturdy surface capable of supporting its weight when fully loaded.
• Allow at least 4 inches (10 cm) of space at the back and sides for proper air circulation and ventilation.
• Avoid placing the unit in direct sunlight or near heat sources (e.g., oven, radiator).
• Za optimalne performanse, provjerite da li je temperatura okoline unutar preporučenog raspona.

4.3 Nivelisanje jedinice

It is crucial for the cooler to be level for proper operation and door alignment. Adjust the leveling legs at the bottom of the unit by turning them clockwise to raise or counter-clockwise to lower until the unit is stable and level.

4.4 Obrtanje vrata (opciono)

The door can be reversed to open from the left or right side to suit your space. This process typically involves:

1. Unplugging the unit.
2. Uklanjanje poklopca gornje šarke i vijaka.
3. Lifting the door off the bottom hinge.
4. Removing the bottom hinge and transferring it to the opposite side.
5. Reattaching the door and securing the hinges.

Refer to the detailed diagrams in the full user manual for specific instructions on door reversal.

4.5 Početno uključivanje

After placement and leveling, plug the cooler into a dedicated 115V grounded electrical outlet. Allow the unit to stand for at least 2-4 hours before loading any bottles to allow the refrigerant to settle.

5. Uputstvo za upotrebu

5.1 Podešavanje temperature

Use the digital control panel (refer to Image 3) to set the desired temperatures for the upper and lower zones.

• Pritisnite ZONE button to select either the upper or lower zone. The selected zone's temperature display will flash.
• Koristite GORE (▲) or DOLJE (▼) arrows to increase or decrease the temperature in 1-degree increments.
• The cooler will begin to adjust to the new setting approximately 30 seconds after the adjustment is complete.
• Za prebacivanje između Fahrenheita (°F) i Celzijusa (°C), pritisnite °F/°C dugme.

5.2 Interior Light Control

Pritisnite LIGHT button on the control panel to turn the interior white LED light on or off.

5.3 Punjenje boca

• Arrange bottles on the beech wood shelves. Standard 750ml bottles are recommended for optimal capacity.
• Oversized bottles may reduce the total storage capacity.
• Ensure bottles do not touch the back wall or obstruct the internal fan for proper air circulation.
• For maximum capacity, alternate the direction of bottles on each shelf as shown in Image 6.

Alarm za 5.4 vrata

The unit is equipped with a door alarm that will sound if the door is left open for two minutes or longer. Close the door completely to silence the alarm.

5.5 Rad dječje brave

Use the provided keys to lock the door and prevent unauthorized access, especially important for households with children. Always ensure the door is locked when not in use to prevent accidental entrapment.

6. Održavanje

6.1 Čišćenje

• unutrašnjost: Unplug the unit. Remove shelves and clean the interior with a solution of warm water and baking soda (2 tablespoons of baking soda to 1 quart of water). Rinse thoroughly and wipe dry.
• Eksterijer: Clean the exterior with a mild detergent and warm water. Wipe dry with a soft cloth. Do not use abrasive cleaners or harsh chemicals.
• Brtva vrata: Redovno čistite zaptivku vrata kako biste osigurali pravilno zaptivanje.

6.2 Automatsko odmrzavanje

This wine cooler features an automatic defrost system. Frost will melt and drain into an evaporation tray at the back of the unit. No manual defrosting is required under normal operating conditions.

6.3 Briga o policama

The beech wood shelves are removable for cleaning or to accommodate larger bottles. Clean them with a damp cloth and mild soap, then dry thoroughly before returning them to the unit.

7. Otkrivanje problema

Prije nego što kontaktirate korisničku službu, provjerite sljedeće uobičajene probleme i rješenja:

8. Specifikacije

9. Garancija i podrška

For warranty information and customer support, please refer to the warranty card included with your product or visit the official hOmeLabs webSačuvajte račun kao dokaz o kupovini u slučaju bilo kakvih reklamacija.
