1. Uvod
Thank you for choosing the Festnight 4G LTE Cat 4 150Mbps Mobile WiFi Router. This portable wireless router is designed to provide high-speed internet access wherever you go, supporting stable and fast signal transmission. It is ideal for travel, home, and office use, allowing multiple devices to connect simultaneously.
This manual provides essential information on setting up, operating, and maintaining your device. Please read it thoroughly before use and keep it for future reference.
Image 1.1: The Festnight 4G LTE Mobile WiFi Router providing internet to a laptop in an office setting.
2. Proizvod je gotovview
2.1 Ključne karakteristike
- Network speed up to 150Mbps for fast downloads and streaming.
- Supports all WiFi-enabled devices, including smartphones, tablets, and laptops.
- High performance with stable and fast signal transmission.
- Slim and compact design for ultimate portability.
- Long-lasting 2000mAh battery providing up to 72 hours of standby time.
- Equipped with a SIM card slot for 4G LTE connectivity.
2.2 Izgled uređaja
Slika 2.1: Prednja strana view of the router with indicators for signal, battery, and messages, and the power button.
Slika 2.2: Bočna strana view rutera, označavajući utor za SIM karticu.
Slika 2.3: Bočna strana view of the router, showing the Micro USB charging port.
Slika 2.4: Stražnja strana view rutera.
3. Podešavanje
3.1 Sadržaj paketa
Prije nego što počnete, molimo vas da se uvjerite da su sve stavke prisutne u paketu:
- 1 x Festnight 4G Wireless WiFi Router
- 1 x USB kabl za punjenje
- 1 x punjiva baterija
- 1 x Korisnički priručnik (engleski)
3.2 Instaliranje SIM kartice i baterije
- Carefully remove the back cover of the router.
- Insert your standard-sized 4G LTE SIM card into the designated SIM card slot. Ensure the card is inserted correctly according to the diagram inside the compartment.
- Insert the provided rechargeable battery into its compartment, ensuring the contacts align properly.
- Vratite zadnji poklopac dok ne klikne sigurno na svoje mjesto.
3.3 Punjenje uređaja
Before first use, fully charge the router. Connect the provided USB cable to the router's Micro USB port and the other end to a USB power adapter (not included) or a computer's USB port. The battery indicator light will show charging status.
4. Uputstvo za upotrebu
4.1 Uključivanje/isključivanje
- To power on: Press and hold the power button (usually located on the front or side) for a few seconds until the indicator lights illuminate.
- Za isključivanje: Ponovo pritisnite i držite dugme za napajanje dok se indikatorska svjetla ne ugase.
4.2 Povezivanje na WiFi
- Ensure the router is powered on and has established a 4G network connection (indicated by the signal light).
- On your WiFi-enabled device (smartphone, laptop, tablet), search for available WiFi networks.
- Locate the network name (SSID) of your Festnight router. This is typically printed on a sticker inside the battery compartment or on the back of the device.
- Select the network and enter the WiFi password (also found on the sticker) when prompted.
- Once connected, your device will have internet access through the router.

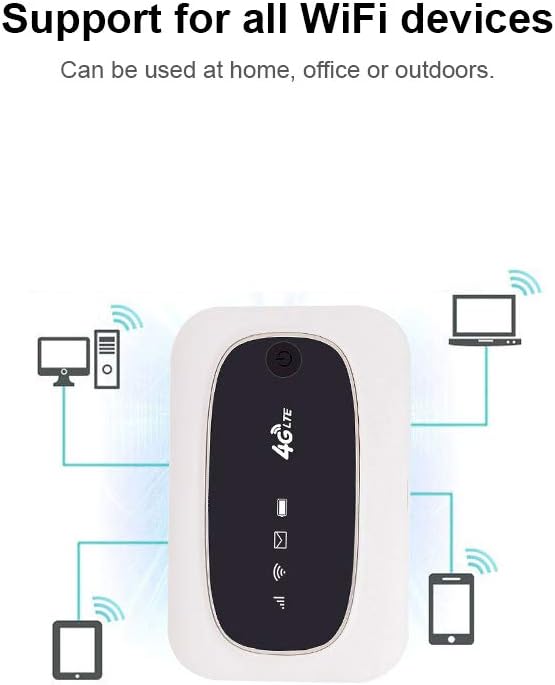

Image 4.1: The router supports connection for various WiFi devices.
4.3 Indikatorska svjetla
The router features several indicator lights to provide status information:
- Indikator signala: Shows the strength of the 4G LTE network signal.
- WiFi indikator: Indicates if WiFi is active and broadcasting.
- Indikator baterije: Prikazuje trenutni nivo baterije i status punjenja.
- Indikator poruke: May light up to indicate new SMS messages on the SIM card (if supported and configured).
5. Održavanje
5.1 Čišćenje
Wipe the device with a soft, dry cloth. Do not use liquid cleaners or aerosols, as they may damage the device. Keep the charging port free of dust and debris.
5.2 Skladištenje
Store the router in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, ensure the battery is partially charged (around 50%) to prolong its lifespan.
5.3 Njega baterija
To maximize battery life, avoid fully discharging the battery frequently. Use only the provided or a compatible USB charging cable. Do not expose the battery to high temperatures or puncture it.
6. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema struje | Low battery; device off. | Charge the battery; press and hold the power button to turn on. |
| Nema 4G signala | No SIM card; SIM card not activated; out of network coverage; incorrect APN settings. | Ensure SIM is inserted correctly; contact your service provider; move to an area with better coverage; check APN settings via web interface (if available). |
| Nije moguće povezati se na WiFi | Incorrect WiFi password; WiFi disabled; device too far from router. | Verify WiFi password; ensure WiFi indicator is on; move closer to the router. |
| Spora brzina interneta | Weak 4G signal; too many connected devices; network congestion. | Move to an area with stronger signal; disconnect unused devices; try again later. |
7. Specifikacije
| Feature | Detalj |
|---|---|
| Brand | Festnight |
| Broj modela | TYJFESTNIGHTC6291-SRSA |
| Tehnologija povezivanja | Wi-Fi, 4G LTE |
| Standard bežične komunikacije | 802.11b, 802.11g, 802.11n |
| Supported WiFi Frequency | 2.4 GHz |
| WiFi 2.4G Transmission Rate | 150 Mbps |
| Maks. brzina prijenosa podataka putem LAN-a | 100 Mbps |
| UE Category | mačka 4 |
| FDD-LTE Bands | B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B26/B27/B28A/B28B |
| TDD-LTE Bands | B38/B40/B41 |
| 4G LTE Download Rate (FDD) | Do 150 Mbps |
| 4G LTE Upload Rate (FDD) | Do 50 Mbps |
| 4G LTE Download Rate (TDD) | Do 130 Mbps |
| 4G LTE Upload Rate (TDD) | Do 35 Mbps |
| Kapacitet baterije | 2000 mAh |
| Vrijeme pripravnosti | Do 72 sati |
| Materijal | ABS |
| Dimenzije proizvoda (D*Š*V) | 9.4 * 6.1 * 1.5 cm (3.7 * 2.4 * 0.59 inches) |
| Težina artikla | Otprilike 52 g (1.83 unci) |
| Sigurnosni protokol | WEP (Note: WEP is an older security standard. For stronger security, ensure your SIM card provider or device settings allow for WPA2 or WPA3 if available.) |
| Antenna Type | Interni |
| Zemlja porijekla | Kina |
| UPC / GTIN | 783908763788 |
| ASIN | B08CC68B6V |
8. Sigurnosne informacije
- Ne izlažite uređaj vodi, vlazi ili ekstremnim temperaturama.
- Izbjegavajte ispuštanje ili izlaganje uređaja jakim udarcima.
- Ne pokušavajte sami rastavljati ili popravljati uređaj. Obratite se kvalifikovanom servisnom osoblju.
- Držite uređaj dalje od medicinskih uređaja, jer to može ometati njihov rad.
- Uređaj i bateriju odložite odgovorno u skladu s lokalnim propisima.
9. Garancija i podrška
This product is covered by a standard return policy, typically 15 days from the date of purchase. For specific warranty details, return procedures, or technical support, please refer to your purchase documentation or contact the retailer where the product was acquired.
