BENYAR Chronograph Quartz Watch BY5140 User Manual

Uvod

Thank you for choosing the BENYAR Chronograph Quartz Watch Model BY5140. This manual provides detailed instructions for setting up, operating, and maintaining your watch to ensure its longevity and accurate performance. Please read this manual carefully before using your watch.

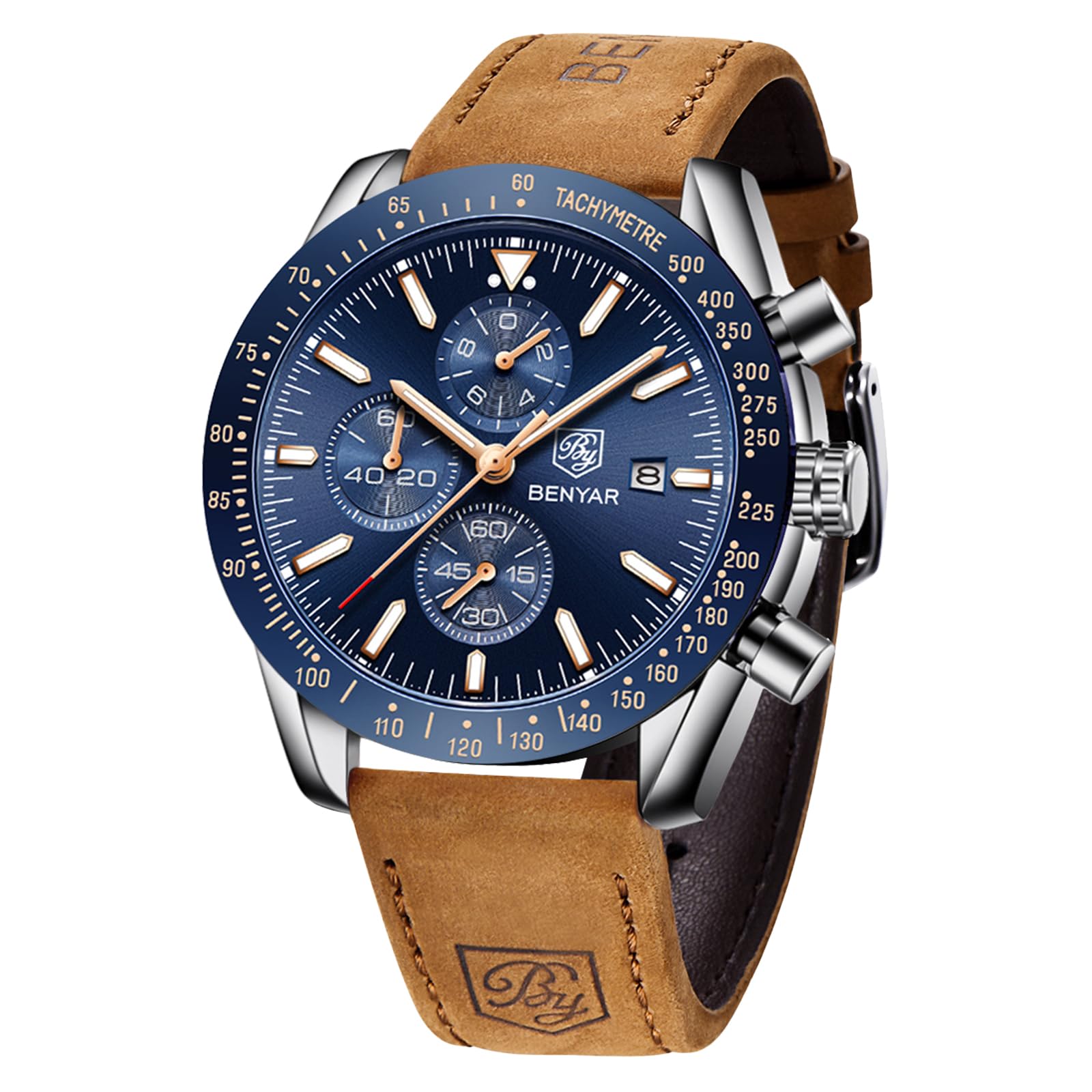

Image: BENYAR Chronograph Quartz Watch BY5140 with blue dial and brown leather strap.

Product Overview

Komponente i funkcije

Your BENYAR BY5140 watch features a multi-functional design. Familiarize yourself with the main components:

• Kruna (srednje dugme): Koristi se za podešavanje vremena i datuma.
• Upper Pusher: Used to start and stop the chronograph.
• Lower Pusher: Koristi se za resetiranje hronografa.
• Podbrojčanici: Include 1/10 second, minute, and second indicators for chronograph function.
• Datumski okvir: Prikazuje trenutni datum.

Image: Diagram illustrating the watch's buttons and sub-dial functions.

Ključne karakteristike

• Izdržljiva konstrukcija: Stainless steel case with a genuine leather strap.
• Scratch-Resistant Dial: Protected by high-hardness mineral glass.
• Otpornost na vodu: Rated for 30 meters (3ATM), suitable for splashes and rain.
• Svjetlosni displej: Hands and markers feature a luminous effect for visibility in low light.

Image: Visual representation of 30M water resistance, high hardness mineral glass, luminous effect, and durable leather strap.

Setup

Podešavanje vremena

1. Pull the crown (middle button) out to the second click position.
2. Okrenite krunicu da podesite kazaljke za sate i minute na željeno vrijeme.
3. Vratite krunicu u normalan položaj da biste pokrenuli sat.

Postavljanje datuma

1. Pull the crown (middle button) out to the first click position.
2. Okrenite krunicu u smjeru kazaljke na satu ili suprotno od smjera kazaljke na satu da biste podesili datum.
3. Once the correct date is set, push the crown back in to the normal position.

Važno: To prevent damage to the date mechanism, avoid setting the date between 9:00 PM and 1:00 AM.

Resetting the Chronograph Hands to Zero

If the chronograph second hand is not aligned to the "0" (zero) position:

1. Pull the crown (middle button) out completely to the second click position.
2. Press the lower pusher repeatedly until the chronograph second hand returns to the "0" position. Press the button once at a time; do not hold it down continuously.
3. Once aligned, push the crown back in to the normal position.

Rukovanje hronografom

Funkcija hronografa vam omogućava mjerenje proteklog vremena.

1. Početak: Pritisnite gornji potiskivač da biste pokrenuli hronograf. Sekundarna kazaljka hronografa će početi da se kreće.
2. zaustaviti: Press the upper pusher again to stop the chronograph. The elapsed time will be displayed on the sub-dials.
3. Resetovati: After stopping the chronograph, press the lower pusher to reset all chronograph hands back to their "0" positions.

Održavanje

Opća njega

• Clean your watch regularly with a soft, dry cloth to remove dust and dirt.
• Avoid exposing the watch to strong magnetic fields, as this can affect timekeeping accuracy.
• Keep the watch away from harsh chemicals, solvents, and detergents, which can damage the case, strap, or seals.

Smjernice za vodootpornost

Your BENYAR BY5140 watch is water-resistant to 30 meters (3ATM). This means it is suitable for daily use and can withstand splashes, rain, and brief immersion in water. However, it is ne suitable for showering, swimming, diving, or any water sports where it might be submerged for extended periods or exposed to high-pressure water.

Oprez: Do not operate the crown or pushers when the watch is wet or submerged, as this can compromise the water resistance.

Image: Water resistance chart for various ATM ratings.

Informacije o bateriji

The watch is powered by one LR44 battery (included). When the battery runs low, the watch may lose accuracy or stop. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and water resistance.

Rješavanje problema

• Sat ne radi: Check if the crown is pushed in completely. If the watch still does not run, the battery may need replacement.
• Kazaljke hronografa se ne resetuju na nulu: Follow the instructions in the "Resetting the Chronograph Hands to Zero" section under Setup.
• Datum se ne mijenja: Ensure the time is set correctly (AM/PM). Avoid setting the date between 9:00 PM and 1:00 AM.
• Voda unutar sata: If you notice condensation or water droplets inside the watch, stop using it immediately and seek professional service. This indicates a breach in water resistance.

Specifikacije

Image: Product dimensions and parameters.

Garancija i podrška

BY BENYAR is committed to 100% customer satisfaction. If you encounter any issues or have questions regarding your watch, please do not hesitate to contact us. We aim to respond to all inquiries within 24 hours.

For support, please refer to the contact information provided with your purchase or visit the official BY BENYAR website.
