This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Juki HZL-NX7 Next Generation Long Arm Sewing and Quilting Machine. Please read this manual thoroughly before using the machine to ensure proper function and to prevent damage.
Važna sigurnosna uputstva
- Uvijek isključite uređaj iz električne utičnice odmah nakon upotrebe i prije čišćenja, skidanja poklopaca ili bilo kakvih korisničkih podešavanja.
- Ne dozvolite djeci da se igraju sa mašinom. Potreban je strog nadzor kada mašinu koriste djeca ili djeca u njihovoj blizini.
- Koristite ovaj uređaj samo za njegovu namjenu, kako je opisano u ovom priručniku. Koristite samo dodatke koje preporučuje proizvođač.
- Nikada ne koristite ovaj uređaj ako je oštećen kabel ili utikač, ako ne radi ispravno, ako je pao ili je oštećen, ili je pao u vodu.
- Držite prste dalje od svih pokretnih dijelova. Potrebna je posebna pažnja oko igle šivaće mašine.
Postavljanje i početna priprema
1. Raspakivanje i postavljanje
Carefully remove the machine from its packaging. Place the machine on a stable, level surface. Ensure adequate space around the machine for comfortable operation, especially considering its long arm design.
Front view of the Juki HZL-NX7 sewing machine, illustrating its overall dimensions including the long arm workspace.
2. Priključak za napajanje
Connect the power cord to the machine and then to a suitable electrical outlet. Ensure the power switch is in the 'OFF' position before connecting.
3. Namotavanje i umetanje kalema
- Stavite kalem konca na iglu za kalem.
- Follow the indicated path for bobbin winding, ensuring the thread is securely guided.
- Place an empty bobbin onto the bobbin winder shaft and push it to the right.
- Pokrenite mašinu da namota kalem. Zaustavite je kada se kalem napuni.
- Insert the wound bobbin into the bobbin case, following the directional arrows for correct thread tension.
Nad glavom view of the Juki HZL-NX7 sewing machine with the top lid open, revealing the bobbin winding area and thread path.
4. Gornje uvlačenje konca
Place the thread spool on the spool pin. Guide the thread through the machine's designated threading path, ensuring it passes through all tension discs and guides. Use the automatic needle threader for convenience.
5. Ugradnja igle
Ensure the machine is off. Loosen the needle clamp screw, insert a new needle with the flat side facing the back, and tighten the screw securely. Always use the correct needle type and size for your fabric.
Uputstvo za upotrebu
1. Powering On and Control Panel Overview
Turn on the machine using the main power switch. The touchscreen control panel will illuminate, providing access to various settings and stitch selections.

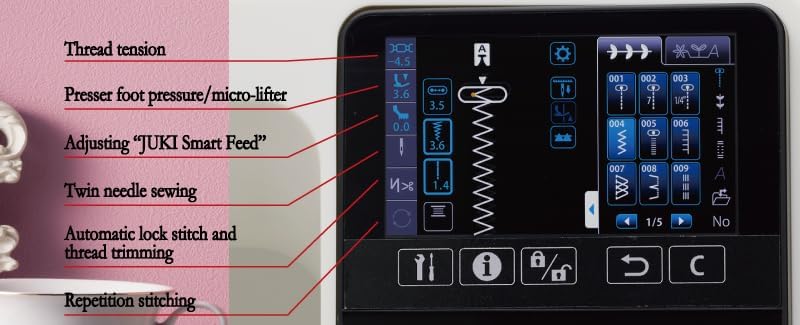

Close-up of the Juki HZL-NX7's touchscreen control panel, showing various settings for thread tension, presser foot, and stitch selection.
2. Odabir i podešavanje boda
Use the touchscreen to browse and select desired stitch patterns. The machine offers a wide range of utility, decorative, and quilting stitches. Adjust stitch length and width as needed using the dedicated controls on the panel.
A display of the first page of stitch patterns available on the Juki HZL-NX7's touchscreen.

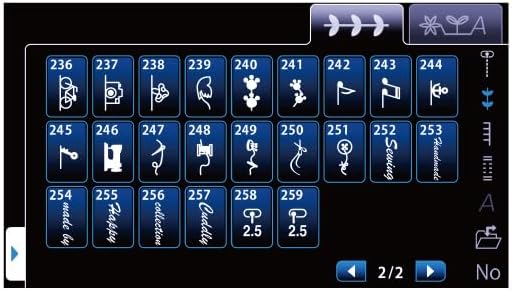

A display of the second page of stitch patterns available on the Juki HZL-NX7's touchscreen, including decorative and utility stitches.
3. Automatic Needle Threading
The HZL-NX7 features an advanced automatic needle threading system. Lower the threader lever, guide the thread as instructed, and release the lever to thread the needle effortlessly.
Close-up view of the needle, presser foot, and feed dog mechanism on the Juki HZL-NX7 sewing machine.
4. Presser Foot Functions
The machine allows for adjustment of presser foot pressure and lifting height. Utilize the built-in walking foot for consistent feeding of multiple layers or slippery fabrics, especially beneficial for quilting.
5. Buttonhole Creation
Attach the buttonhole foot. Select the desired buttonhole style from the menu. The machine will automatically create buttonholes to the specified size.
The Juki HZL-NX7 sewing an automatic buttonhole on fabric, demonstrating the buttonhole foot.
6. Free Motion Quilting
For free motion quilting, lower the feed dogs using the designated control. Attach a free motion quilting foot. The large throat space provides ample room for maneuvering quilts.
Održavanje
1. Čišćenje
Regularly clean lint and dust from the bobbin area, feed dogs, and tension discs using a small brush. Ensure the machine is unplugged before cleaning. Remove the needle plate for thorough cleaning of the feed dogs.
2. Zamjena igle
Replace the needle frequently, especially after 8-10 hours of sewing or if it becomes bent or dull. A fresh needle prevents skipped stitches and fabric damage.
3. Skladištenje dodatne opreme
Keep all accessories, such as presser feet and tools, organized in the provided accessory box to prevent loss and damage.

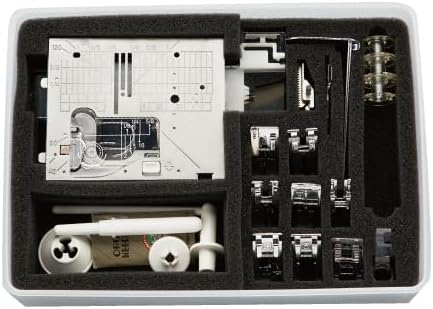

An organized view of the accessory box for the Juki HZL-NX7, containing various presser feet and tools.
Rješavanje problema
Prije nego što kontaktirate servis, ponovoview sljedeći uobičajeni problemi i njihova rješenja:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Skipped Stitches | Nepravilna igla, savijena igla, nepravilno uvlačenje konca, pogrešna napetost konca. | Zamijenite iglu, ponovo uvucite konac u mašinu, podesite napetost. |
| Thread Breaking | Incorrect threading, high tension, burr on needle plate, poor quality thread. | Re-thread, adjust tension, check for burrs, use quality thread. |
| Mašina se ne pokreće | Power cord not connected, power switch off, foot controller not connected. | Check power connections, ensure switch is on, connect foot controller. |
| Neravni šavovi | Incorrect tension, improper fabric feeding, dull needle. | Adjust tension, ensure proper fabric handling, replace needle. |
| Feed Dogs Not Engaging | Feed dog lever in down position. | Ensure feed dog lever is in the up position for normal sewing. |
Specifikacije
- Brand: JUKI
- Broj modela: HZL-NX7
- Materijal: Metal
- Dimenzije proizvoda (D x Š x V): 9.45" x 22.64" x 12.2"
- Težina artikla: 34 funti
- Izvor napajanja: Corded Electric
- UPC: 675900959743
Side view of the Juki HZL-NX7 sewing machine, highlighting its height and length dimensions.
Garancija i podrška
For warranty information, please refer to the warranty card included with your product or contact your authorized Juki dealer. For technical support and service inquiries, you may contact Juki America directly. It is recommended to retain the original packaging for potential shipping needs.
