1. Uvod
Thank you for choosing the Pureline Pure Pro XL PL1502 Above Ground Pool Pump. This manual provides essential information for the safe installation, operation, and maintenance of your new pool pump. Please read all instructions carefully before installation and use to ensure proper function and longevity of the product.
Image: The Pureline Pure Pro XL PL1502 pump, showing its compact design and key components.
2. Sigurnosne informacije
UPOZORENJE: Nepridržavanje ovih uputa može dovesti do ozbiljnih ozljeda ili smrti.
- električna sigurnost: All electrical work must be performed by a qualified electrician and comply with local and national electrical codes.
- Rizik od strujnog udara: Do not run the pump dry. Do not use an extension cord.
- plasman: Install the pump at least 10 feet from the inside walls of a pool.
- Vrsta bazena: This pump is designed for use with permanently-installed pools only. Do not use with storable pools.
- Vrsta kućišta: Enclosure Type 3.
- Uvijek isključite napajanje prije servisiranja pumpe.
- Držite djecu dalje od pumpe i električnih priključaka.
- Osigurajte ispravno uzemljenje kako biste spriječili električne opasnosti.

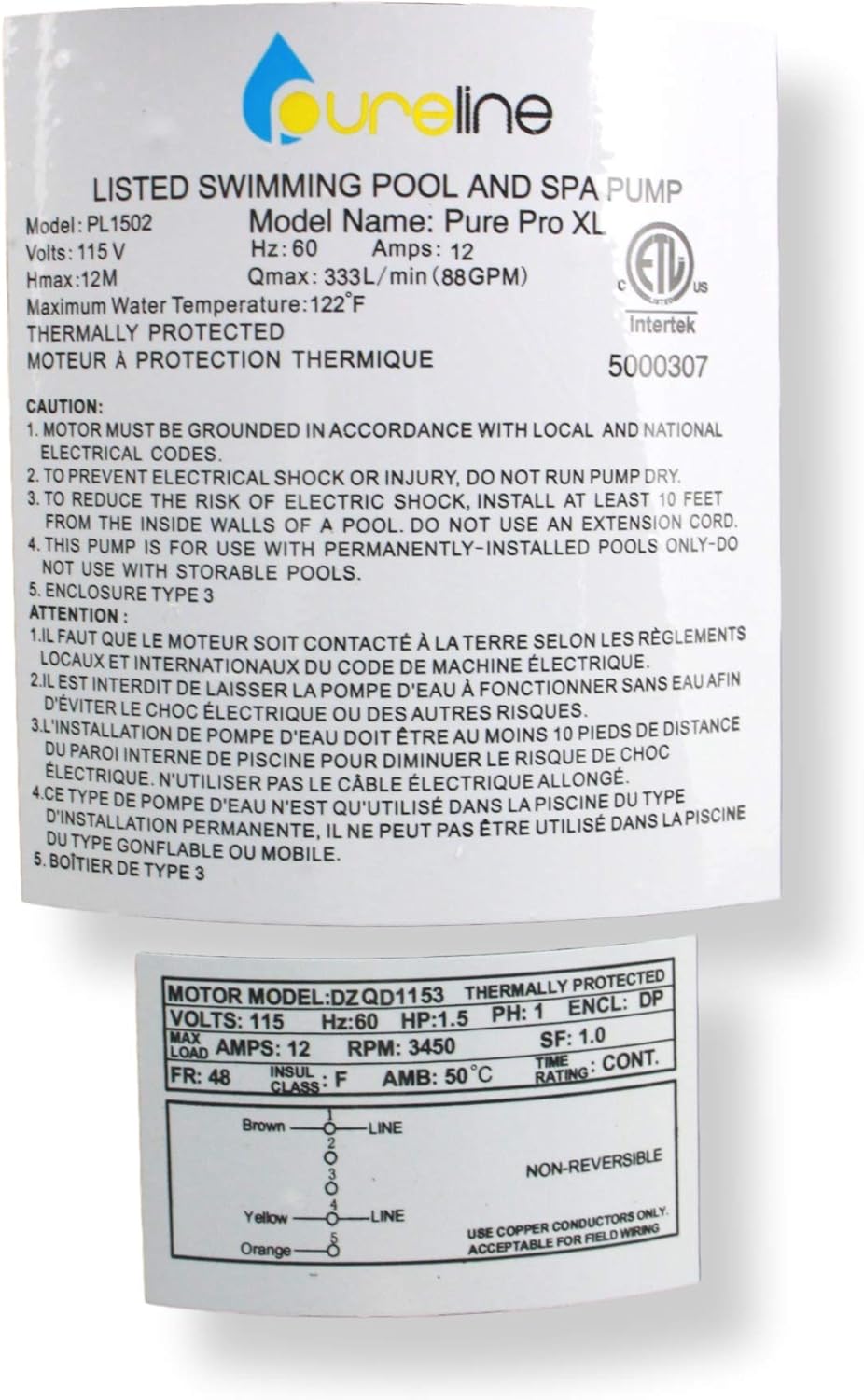

Image: Product label displaying electrical specifications and critical safety warnings in English and French.
3. Značajke proizvoda
- Corrosion-Proof Construction: All components are molded from reinforced thermoplastic for durability and long life.
- Lako održavanje: Features a transparent strainer basket cover for easy monitoring and a drain plug for simple winterization.
- Integrated Cord: Includes a 115V, 6-foot cord with a 3-prong plug.
- tihi rad: Designed for quiet and efficient performance.
- Svestrana primjena: Suitable for above-ground pools of all types, including those with in-floor cleaning systems, solar heating systems, and water features.
Slika: Detaljna view of the pump highlighting the extra-large clear lid, 1.5" ports, and 6' cord.
4. Specifikacije
| Feature | Specifikacija |
|---|---|
| Broj modela | PL1502 |
| konjske snage (HP) | 1.5 HP |
| Brzina | Single Speed |
| Voltage | 115 Volts |
| AmpDob | 12 Amps |
| Port Size | 1-1/2 inča |
| Cord Type | Utikač sa 3 kontakta |
| Dužina kabla | 6 stopa |
| Maksimalni protok | 65 galona u minuti (GPM) |
| Maksimalna visina podizanja | 6 stopa |
| Dimenzije proizvoda (D x Š x V) | 9.5" x 6.5" x 6.7" |
| Težina artikla | 26 funti |
| Materijal | Ojačana termoplastika |
Image: Diagram showing the dimensions of the Pureline Pure Pro XL PL1502 pump.
5. Postavljanje i instalacija
Proper installation is crucial for the pump's performance and safety. Refer to local and national electrical and plumbing codes.
- Lokacija: Place the pump on a firm, level surface, at least 10 feet from the pool's edge. Ensure adequate ventilation and protection from direct sunlight and harsh weather.
- Montaža: Secure the pump to the mounting surface to prevent movement and vibration.
- Vodovodni priključci: Connect the pump to your pool's filtration system using 1-1/2 inch plumbing. Ensure all connections are tight to prevent leaks. The top discharge design is compatible with most filters.
- Električni priključak: Connect the 3-prong plug to a properly grounded 115V electrical outlet. Nemojte koristiti produžne kablove. Ensure the circuit is protected by a Ground Fault Circuit Interrupter (GFCI).
- Punjenje pumpe: Before starting, ensure the pump is filled with water. Remove the transparent strainer basket cover, fill the basket with water, and replace the cover securely.

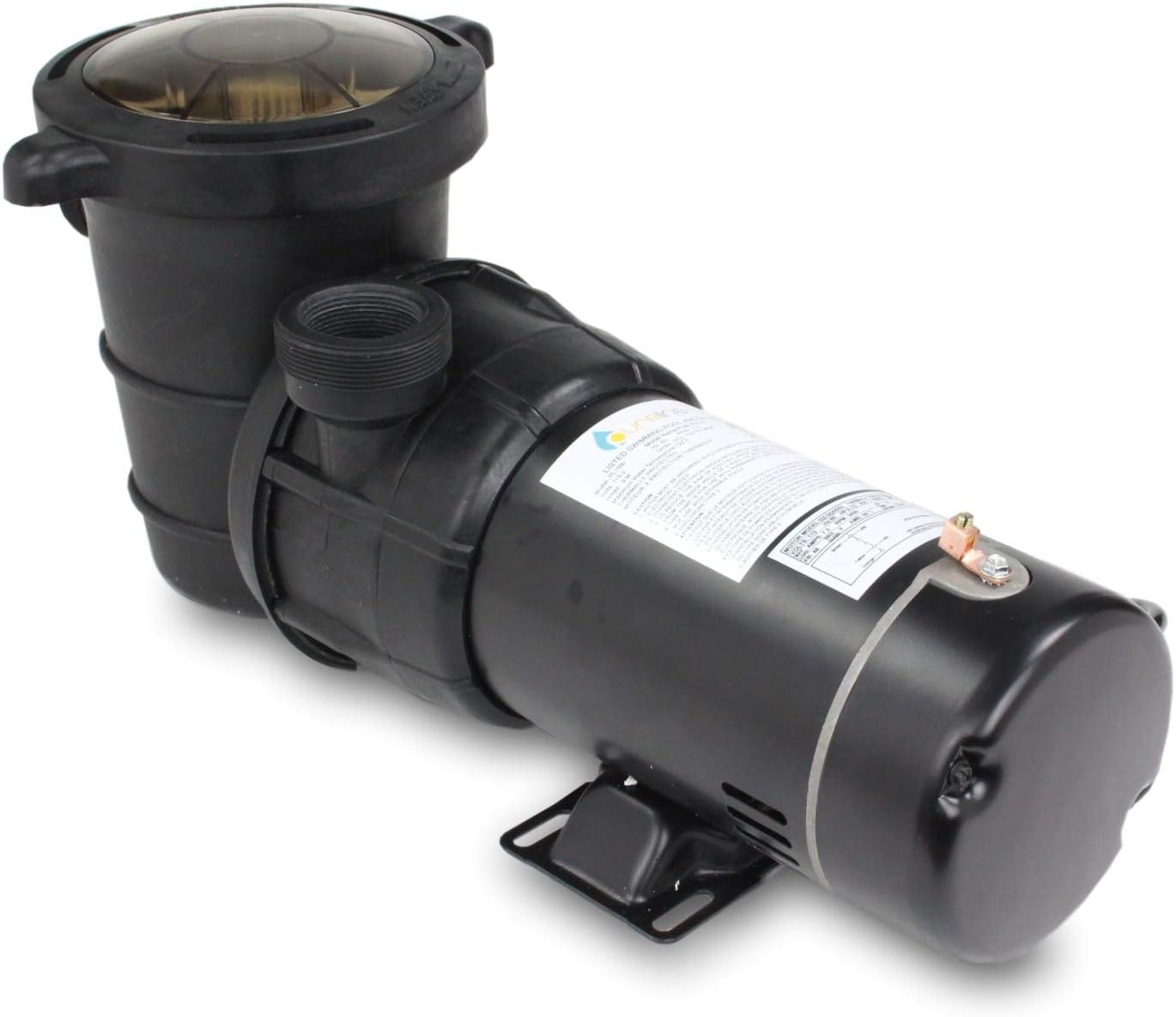

Slika: Sa strane view of the Pureline Pure Pro XL PL1502 pump, showing the motor and wet end assembly.
6. Uputstvo za upotrebu
Once installed and primed, operating the pump is straightforward.
- Prvo pokretanje: After priming, turn on the power to the pump. The pump should start drawing water and circulating it through the filter system.
- Nadgledanje: Observe the transparent strainer basket cover to ensure water flow and check for air bubbles, which may indicate a leak in the suction line.
- Vrijeme rada: The optimal run time for your pool pump depends on pool size, usage, and environmental factors. Consult your pool professional or local guidelines for recommended daily run times to ensure proper filtration.
- Gašenje: To turn off the pump, simply disconnect power at the switch or circuit breaker.
7. Održavanje
Regular maintenance ensures efficient operation and extends the life of your pump.
- Čišćenje korpe filtera: The transparent strainer basket cover allows you to see when the basket needs cleaning. Turn off the pump, remove the cover, empty debris from the basket, and rinse it. Replace the basket and cover securely, ensuring the O-ring is properly seated.
- Zimljenje: Before freezing temperatures arrive, drain the pump completely. Use the drain plug for easy water removal. Store the pump in a dry, protected area if possible, or ensure it is fully drained and protected from freezing.
- Inspekcija pečata: Periodically inspect the pump seals for any signs of wear or leaks. Replace worn seals promptly to prevent damage to the motor.
- Generalno čišćenje: Keep the exterior of the pump clean and free of debris to ensure proper ventilation.
8. Otkrivanje problema
If you encounter issues with your pump, refer to the following common troubleshooting steps:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Pumpa se ne pokreće | No power, tripped breaker/GFCI, motor issue | Check power supply, reset breaker/GFCI. If motor hums but doesn't start, consult a technician. |
| Pumpa radi, ali nema protoka vode | Pump not primed, clogged strainer basket, air leak in suction line | Re-prime the pump. Clean strainer basket. Check all suction line connections for leaks. |
| Nizak protok vode | Clogged basket, dirty filter, partially closed valve | Clean strainer basket. Backwash or clean filter. Ensure all valves are fully open. |
| Pumpa je bučna | Air leak, cavitation, worn bearings | Check for air leaks in suction line. Ensure pump is adequately primed. If noise persists, motor bearings may be worn; consult a professional. |
| Voda curi iz pumpe | Loose connections, worn shaft seal, cracked housing | Tighten plumbing connections. Inspect and replace shaft seal if worn. If housing is cracked, pump replacement may be necessary. |
9. Garancija i podrška
For warranty information or technical support, please contact Pureline customer service. Keep your purchase receipt and model number (PL1502) handy when contacting support.
Proizvođač: Pureline
For further assistance, visit the official Pureline webweb-mjesto ili kontaktirajte njihove kanale za korisničku podršku.
