1. Proizvod je gotovview
The Emerson Quiet Kool 15,000 BTU window air conditioner with remote control is designed to provide powerful cooling and dehumidification for large spaces up to 700 square feet. This 115V unit offers a combination of cooling, fan, and dehumidifier functions to enhance indoor comfort.

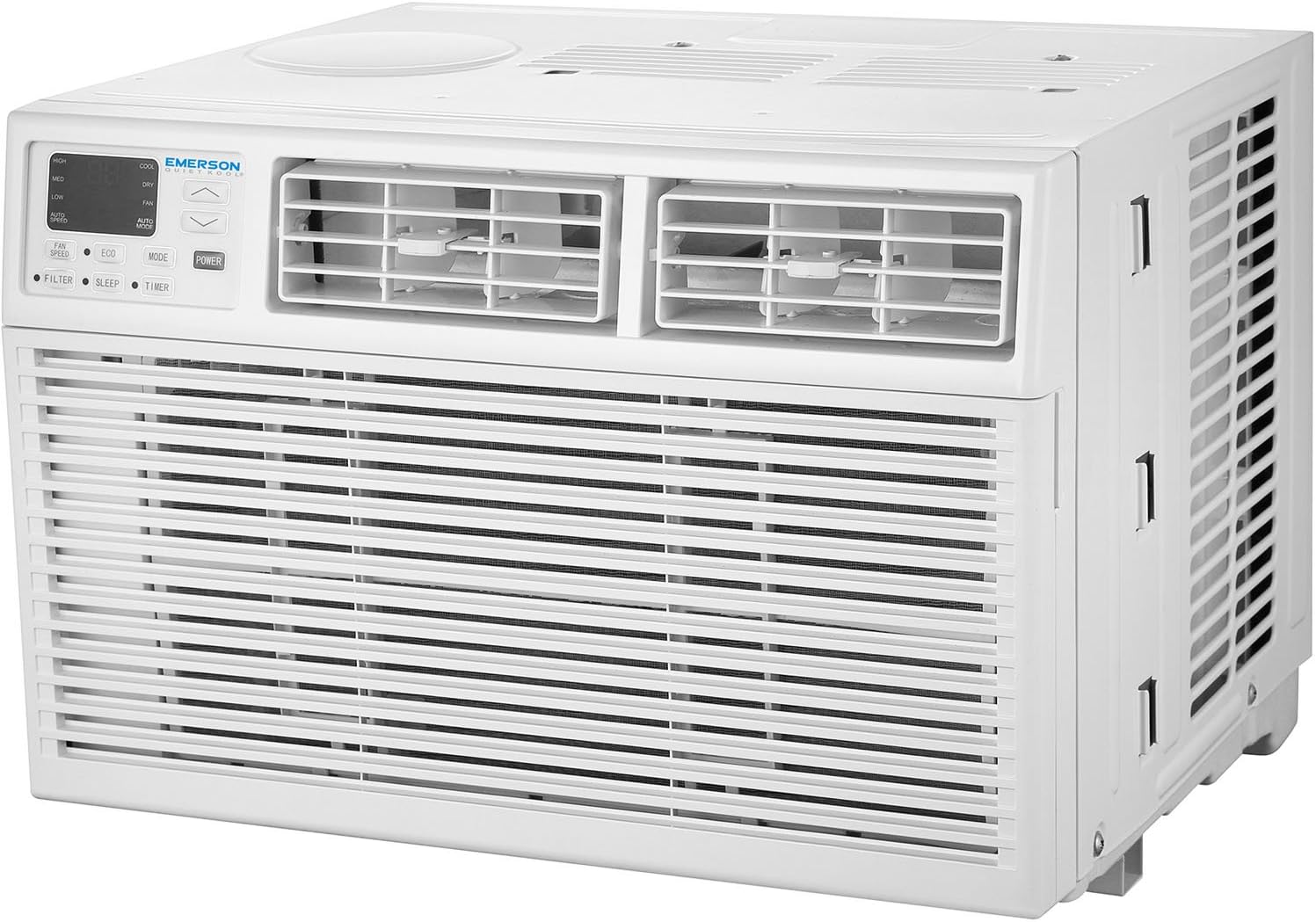

Slika 1: Prednja strana view of the Emerson Quiet Kool Window Air Conditioner.
Ključne karakteristike:
- 3-in-1 Air Conditioner: Features cooling at 15,000 BTUs, 3 fan speeds, and excess moisture removal up to 3.5 pints per hour. Ideal for large rooms.
- tihi rad: Operates at a low noise level of 52dB on the low setting, making it one of the quietest in its class.
- Perivi filter: Equipped with a reusable, easy-access filter that alerts you when cleaning is needed for optimal efficiency. The filter also helps reduce room odors and airborne particles.
- Funkcija mirovanja: Intelligently adjusts temperature and fan speed to maintain comfort overnight while conserving energy.
- Electronic Controls & Remote: User-friendly electronic controls and a full-function remote control provide convenient operation.
2. Sigurnosne informacije
Molimo vas da pažljivo pročitate sva sigurnosna uputstva prije instalacije i upotrebe kako biste spriječili povrede ili oštećenja. Sačuvajte ovaj priručnik za buduću upotrebu.
- električna sigurnost: Provjerite je li uređaj priključen na pravilno uzemljenu električnu utičnicu od 115 V. Ne koristite produžne kablove ili adaptere za utikače.
- Instalacija: This unit is heavy (approximately 105.8 pounds). It is recommended that two or more people lift and install the air conditioner to prevent injury. Ensure the window opening meets the specified dimensions (28" to 41" width, 19" minimum height).
- ventilacija: Do not block air vents or exhaust openings. Proper airflow is essential for efficient and safe operation.
- Održavanje: Uvijek isključite uređaj iz struje prije čišćenja ili bilo kakvog održavanja.
- Prijedlog 65 Upozorenje: Ovaj proizvod vas može izložiti hemikalijama, uključujući olovo, za koje je u državi Kalifornija poznato da uzrokuje rak i urođene mane ili druge reproduktivne štete. Za više informacija idite na www.P65Warnings.ca.gov.
3. Identifikacija dijelova
Upoznajte se s glavnim komponentama vašeg klima uređaja.
Figure 2: Control Panel and Air Louvers. Features include air directional louvers, LED display, quick access filter, and energy saver mode.
Figure 3: Full Function Remote Control. The remote allows convenient adjustment of settings from a distance.

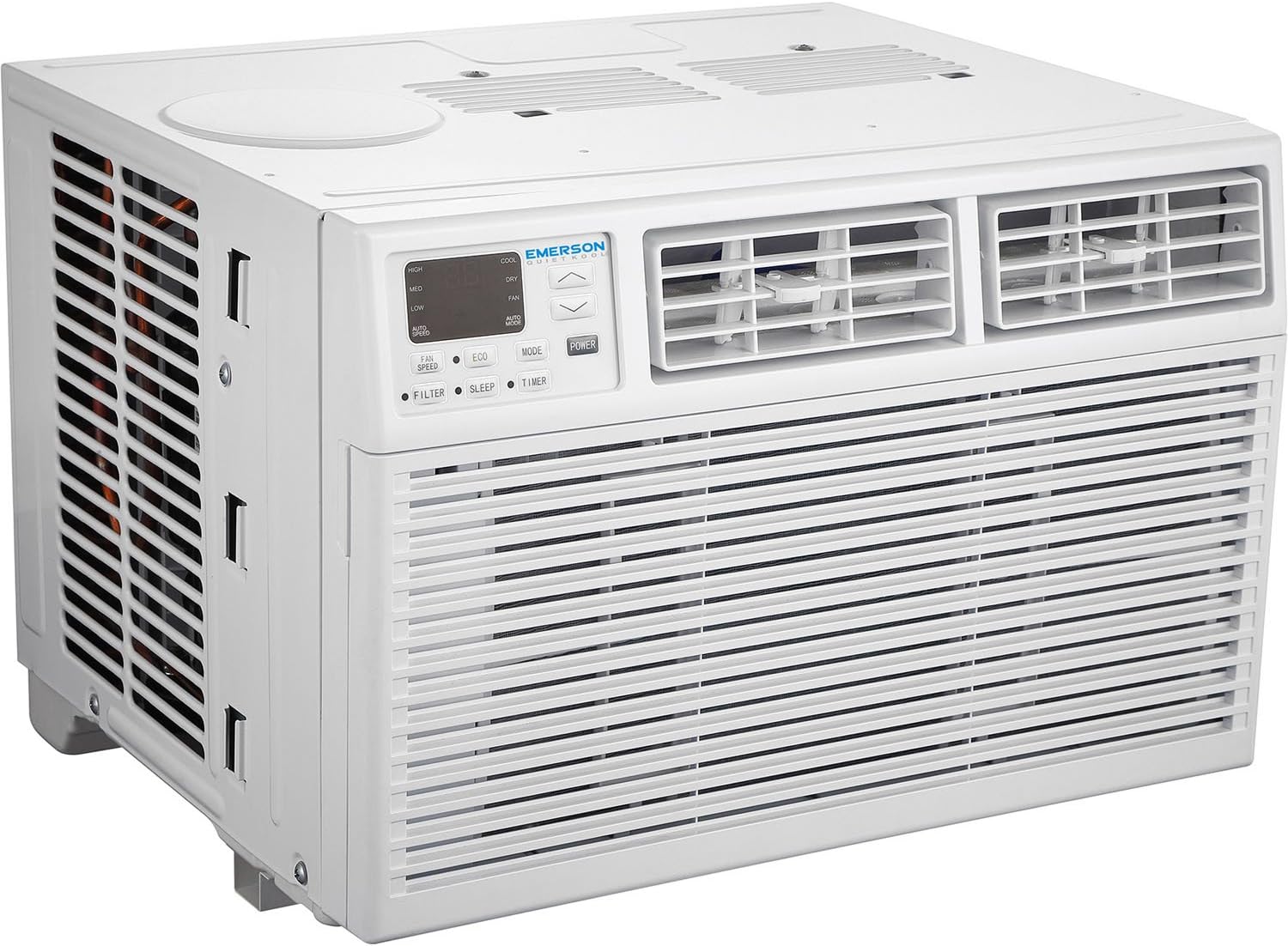

Slika 4: Bočna strana view of the air conditioner, showing the side vents and overall casing.
4. Postavljanje i instalacija
Proper installation is crucial for the performance and longevity of your air conditioner. This unit is designed for window installation.
Kontrolna lista prije instalacije:
- Verify window dimensions: The unit fits windows with a width between 28 inches and 41 inches, and a minimum height of 19 inches.
- Gather necessary tools: Screwdriver, measuring tape, level.
- Ensure adequate support: The unit weighs approximately 105.8 pounds. Ensure your window frame and surrounding structure can support this weight.
- Assistance: Due to the weight and size, it is highly recommended to have at least two people for lifting and installation.
Figure 5: Window Fit Diagram. This image illustrates the required window dimensions for proper installation.
Koraci instalacije (općenito):
- Pripremite jedinicu: The chassis may need to be removed from the outer casing to install the top and bottom mounting brackets and the sliding window insulation panels. Refer to the detailed instructions in the included manual for specific steps.
- Instalirajte nosače za montažu: Attach the provided mounting brackets to the unit and window frame as per the manual.
- Postavite jedinicu u prozor: Carefully lift and place the air conditioner into the prepared window opening. Ensure the unit is slightly tilted outwards to allow for proper condensation drainage.
- Secure Side Panels: Extend the accordion side panels to fill the window opening and secure them.
- Zaptivne praznine: Use foam seals or weatherstripping to seal any gaps around the unit to prevent air leakage and improve efficiency.
- Priključak: Once securely installed, plug the unit into a dedicated 115V, 15A grounded outlet.
Figure 6: Installed Unit. This image shows the air conditioner properly installed in a window.
5. Uputstvo za upotrebu
Your Emerson Quiet Kool air conditioner offers various modes and settings for optimal comfort.
Kontrolna ploča i daljinski upravljač:
The unit can be operated using the electronic control panel on the front of the unit or the included full-function remote control.
Načini rada:
- Način hlađenja: Provides powerful cooling. Adjust the temperature setting and fan speed (Low, Med, High) to your preference.
- Način rada ventilatora: Circulates air without cooling. Useful for ventilation. Select from 3 fan speeds.
- Režim sušenja (odvlaživanja): Reduces humidity in the room. The unit can remove up to 3.5 pints of moisture per hour.
- Režim spavanja: Activates a quiet operation setting that gradually adjusts the temperature and fan speed to maintain comfort while saving energy during sleep.
- Eko način rada: Optimizes energy consumption by cycling the compressor and fan on and off to maintain the set temperature.
Dodatne funkcije:
- Tajmer: Set a 24-hour on/off timer to program the unit to start or stop at specific times.
- Smjer zraka: Adjust the horizontal and vertical louvers on the front of the unit to direct airflow as desired.
- Podsjetnik filtera: An indicator light on the control panel will illuminate when it's time to clean the air filter.
6. Održavanje
Redovno održavanje osigurava optimalne performanse i produžava vijek trajanja vašeg klima uređaja.
Čišćenje vazdušnog filtera:
The air filter should be cleaned regularly, especially when the "Filter" indicator light illuminates. A dirty filter can reduce cooling efficiency and airflow.
- Isključite i iskopčajte: Uvijek isključite klima uređaj i iskopčajte ga iz električne utičnice prije čišćenja.
- Ukloni filter: The filter is easily accessible. Gently pull it out from its slot.
- Očisti filter: Wash the filter with warm, soapy water. Rinse thoroughly. For heavily soiled filters, a vacuum cleaner can be used to remove loose dirt before washing.
- Suhi filter: Allow the filter to air dry completely before reinserting it into the unit. Do not use direct heat to dry the filter.
- Ponovna instalacija filtera: Vratite suhi filter u prvobitni položaj.
Čišćenje vanjskog dijela jedinice:
Obrišite vanjski dio casing s mekim, damp cloth. Do not use harsh chemicals, abrasives, or waxes, as these can damage the finish.
Sezonsko skladištenje:
If storing the unit for an extended period, clean the filter and ensure the unit is dry. Cover it with a plastic sheet or original packaging and store in a dry, cool place.
7. Otkrivanje problema
Prije nego što kontaktirate korisničku podršku, isprobajte ove uobičajene korake za rješavanje problema.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Klima uređaj se ne uključuje. | Nema struje, isključen je osigurač, uređaj je isključen iz struje. | Provjerite priključak kabla za napajanje, resetirajte osigurač i provjerite da li utičnica funkcioniše. |
| Uređaj ne hladi efikasno. | Zaprljan filter za vazduh, začepljeni otvori za vazduh, prevelika prostorija, otvorena vrata/prozori. | Clean air filter, clear obstructions, ensure room size is within specifications, close doors/windows. |
| Jedinica je bučna. | Labavi dijelovi, uređaj nije nivelisan, normalni zvukovi rada. | Ensure unit is securely installed and level. Some sounds (fan, compressor) are normal. If clicking sounds occur, ensure no debris is present. |
| Voda kaplje vani. | Normalna drenaža kondenzacije. | This is normal. Ensure the unit is slightly tilted outwards for proper drainage. |
8. Specifikacije
Detailed technical specifications for the Emerson Quiet Kool EARC15RE1.
| Specifikacija | Vrijednost |
|---|---|
| Broj modela | EARC15RE1 |
| Kapacitet hlađenja | 15,000 BTU |
| Područje pokrivenosti | Do 700 kvadratnih metara. Ft. |
| Voltage | 115 Volts |
| Nivo buke (nizak) | 52 dB |
| Kapacitet odvlaživanja | 3.5 pinte/sat |
| Dimenzije proizvoda (D x Š x V) | 23.6" x 25.4" x 17.9" |
| Težina artikla | 105.8 funte |
| Sezonski omjer energetske efikasnosti (SEER) | 11.9 |
| Uključene komponente | Window air conditioner, window mounting kit, remote control, manual, warranty card |
| Boja | Bijelo |
Figure 7: Product Dimensions. This image provides a visual representation of the unit's measurements.
Figure 8: Cooling Capacity and Features. Illustrates the 700 sq. ft. cooling area and other benefits like washable filter and fast cooling.
9. Garancija i podrška
Emerson Quiet Kool stands behind the quality of its products.
Informacije o garanciji:
Your Emerson Quiet Kool air conditioner window unit comes with an industry-exclusive warranty that covers:
- 1 godina: Rad
- 2 godine: dijelovi
- 5 godine: Kompresor
Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the warranty card included with your product.
Korisnička podrška:
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Emerson Quiet Kool customer support. Contact information can typically be found on the warranty card or the official Emerson Quiet Kool website.
