Veleco ZT 63 Retro 3-Wheel Mobility Vehicle User Manual

Model: ZT-63

Uvod

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Veleco ZT 63 Retro 3-Wheel Mobility Vehicle. Please read this manual thoroughly before operating the vehicle to ensure proper usage and to maximize its lifespan.

The Veleco ZT 63 is a 3-wheel mobility vehicle designed for personal transportation, featuring a high-capacity battery for extended range (45-60 Km), full suspension for a comfortable ride, and LED lighting for enhanced visibility. It is built for stability and safety, offering dual-speed modes for various environments.

Sigurnosne informacije

Vaša sigurnost je najvažnija. Uvijek se pridržavajte sljedećih smjernica:

  • This mobility scooter is intended for use by odrasli samo.
  • The Veleco ZT 63 is not designed to carry passengers in other vehicles.
  • Always ensure the drive system is re-engaged before an occupant is left unattended or attempts to operate the mobility scooter.
  • Observe the maximum load capacity of 160 kg. Exceeding this limit can compromise stability and performance.
  • Operate the vehicle at a safe maximum speed, especially in crowded areas or on uneven terrain.
  • Familiarize yourself with all controls, including lighting, indicators, and the horn, before your first ride.
  • Redovno provjeravajte pritisak u gumama i funkcionalnost kočnica.
  • Avoid sudden acceleration or braking, especially when maneuvering slowly or in tight spaces.
Warning against carrying passengers on the mobility scooter

Opis slike: A warning label in multiple languages stating that a mobility scooter is not designed to carry passengers in other vehicles. This emphasizes a critical safety rule for the Veleco ZT 63.

Raspakivanje i podešavanje

Upon receiving your Veleco ZT 63, carefully unpack all components and inspect for any damage.

Šta je u kutiji:

  • Veleco ZT 63 Mobility Vehicle
  • Punjač
  • Korisnički priručnik (ovaj dokument)
  • Rain Cover

Initial Assembly and Checks:

  1. Podešavanje upravljača: Adjust the handlebars to a comfortable and safe riding position. Ensure all bolts are securely tightened.
  2. Instalacija ogledala: Pričvrstite stražnji dioview mirrors and adjust them to provide clear visibility behind the vehicle.
  3. Podešavanje sjedala: Adjust the seat for optimal comfort and accessibility.
  4. Povezivanje baterije: Ensure the battery is properly connected. The battery is typically located under the seat.
  5. Prvo punjenje: Before initial use, fully charge the battery. Connect the charger to the vehicle's charging port and then to a standard electrical outlet. The charger's indicator light will typically change when charging is complete.
Veleco ZT 63 Retro 3-Wheel Mobility Vehicle, front-side view

Opis slike: Prednja strana view of the Veleco ZT 63 Retro 3-Wheel Mobility Vehicle in black, showcasing its classic design, front headlight, and three-wheel configuration.

Uputstvo za upotrebu

Pokretanje vozila:

  1. Umetnite ključ u bravu za paljenje i okrenite ga u položaj 'UKLJUČENO'.
  2. Check the dashboard display for battery level and readiness indicators.
Close-up of the Veleco ZT 63 dashboard display

Opis slike: Krupni plan view of the Veleco ZT 63's digital dashboard display, showing speed, battery charge, and other operational indicators.

Kontrole i funkcije:

  • Leptira za gas: Nalazi se na desnoj ručki upravljača. Lagano okrenite za ubrzanje.
  • kočnice: Hand levers on both handlebars control the front and rear brakes. Apply smoothly.
  • Headlight/Tail Light: Use the switch on the handlebar to turn lights on/off for visibility.
  • Indicators (Turn Signals): Use the switch to signal turns. Ensure they are off after completing a turn.
  • truba: Press the button to alert others.
  • Režimi brzine: The ZT 63 features dual-speed modes. Select the appropriate mode for your environment (e.g., lower speed for sidewalks, higher for roads).
  • Vožnja unazad: Engage the reverse function carefully when backing up.
Close-up of Veleco ZT 63 handlebar controls

Opis slike: Detaljno view of the Veleco ZT 63's handlebar controls, showing buttons for lights, horn, and speed modes (labeled 1, 2, 3) and reverse (D, R).

Savjeti za jahanje:

  • Uvijek održavajte sigurnu udaljenost od drugih vozila i pješaka.
  • Budite svjesni svoje okoline i potencijalnih opasnosti.
  • Avoid riding in extreme weather conditions if possible.
  • When parking, ensure the vehicle is stable and the ignition is turned off.

Održavanje

Regular maintenance ensures the longevity and optimal performance of your Veleco ZT 63.

  • Održavanje baterije:
    • Charge the battery regularly, even if the scooter is not in frequent use, to maintain battery health.
    • Izbjegavajte potpuno pražnjenje baterije prije ponovnog punjenja.
    • Koristite samo isporučeni punjač.
  • gume:
    • Check tire pressure weekly. Refer to the tire sidewall for recommended pressure.
    • Inspect tires for wear and tear, and replace if necessary.
  • kočnice:
    • Regularly check brake functionality. Ensure they engage smoothly and effectively.
    • If brakes feel loose or unresponsive, have them inspected by a qualified technician.
  • čišćenje:
    • Očistite vozilo sa oglasomamp krpom. Izbjegavajte korištenje perača pod visokim pritiskom ili jakih hemikalija.
    • Držite električne komponente suvim.
  • Skladištenje:
    • Store the vehicle in a dry, cool place, away from direct sunlight and extreme temperatures.
    • Use the provided rain cover when storing outdoors to protect against elements.

Rješavanje problema

This section addresses common issues you might encounter with your Veleco ZT 63.

ProblemMogući uzrokRješenje
Vozilo se ne pokreće.Battery is low or not connected; Ignition key is off.Charge the battery; Ensure battery connections are secure; Turn ignition key to 'ON'.
Smanjen domet ili snaga.Battery not fully charged; Old battery; Overloaded vehicle.Fully charge the battery; Consider battery replacement if old; Reduce load to within 160kg capacity.
Kočnice su slabe.Istrošene kočione pločice; labava sajla kočnice.Have brakes inspected and adjusted or replaced by a qualified technician.
Svjetla ne rade.Bulb burnt out; Wiring issue; Switch off.Check light switch; Inspect bulbs and replace if necessary; Consult service if wiring is suspected.

For issues not listed here or if solutions do not resolve the problem, please contact Veleco customer support.

Specifikacije

Key technical specifications for the Veleco ZT 63 Retro 3-Wheel Mobility Vehicle:

  • Model: VELECO ZT63 / ZT-63
  • Proizvođač: TMEC
  • Dimenzije proizvoda: 180 x 76 x 110 cm (Dužina x Širina x Visina)
  • Težina artikla: 99 kg
  • Maksimalni kapacitet punjenja: 160 kg (352 lbs)
  • Vrsta baterije: Lead-Acid, 60V20AH
  • Voltage: 60 Volts
  • Wattage: 650 vati
  • Ulaz punjača: 180-240V~50/60Hz, 1.5A
  • Izlaz punjača: 73.5VDC - 2.6-3.0A
  • Radijus okretanja: 1950 mm
  • Prečnik okretanja: 2450 mm
  • Maks. nagib: 17°
  • Boja: Crna
Veleco ZT 63 electric mobility scooter specifications label

Opis slike: A label detailing technical specifications for the ZT63 electric mobility scooter, including battery type, input/output voltage, and manufacturer information.

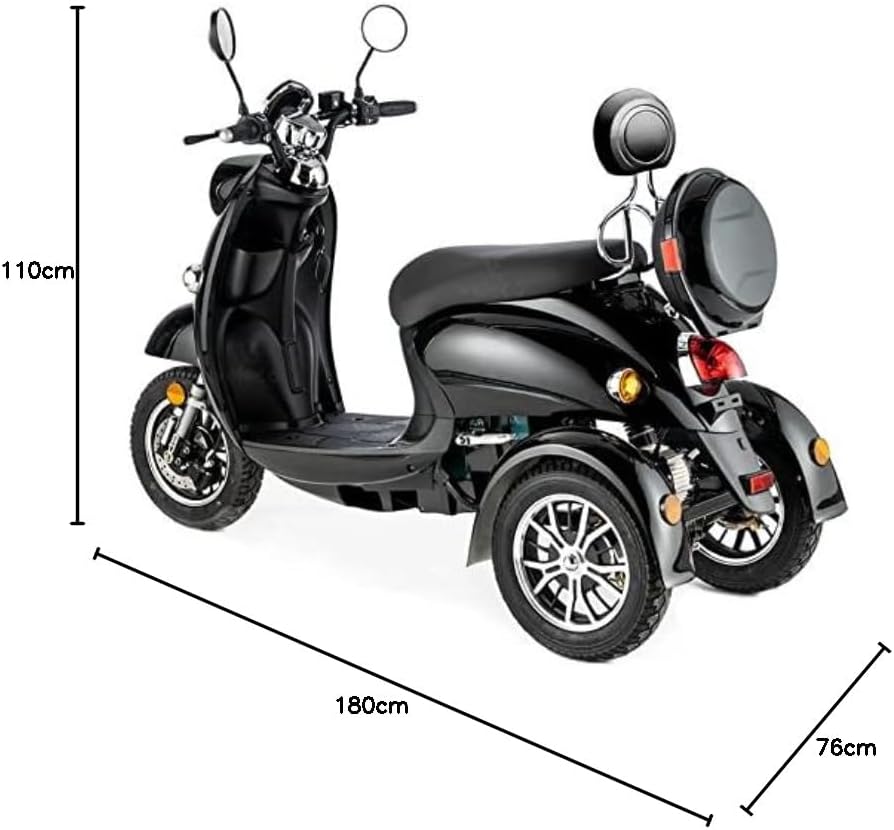

Veleco ZT 63 Retro 3-Wheel Mobility Vehicle with dimensions

Opis slike: Strana view of the Veleco ZT 63 mobility vehicle with overlaid dimensions indicating its length (180cm), width (76cm), and height (110cm).

Garancija i podrška

For any questions, technical assistance, or warranty claims, please contact Veleco customer support. As the official distributor for Veleco, Velobike is committed to delivering exceptional service and support for your product.

Molimo pogledajte dokumentaciju o kupovini za specifične uslove i odredbe garancije.

Kontakt informacije: Please visit the official VELECO store on Amazon or the Velobike webstranicu za najnovije kontakt podatke.VELECO Store on Amazon
