Candy X-Range CMXG 30DS Microwave with Grill - User Manual

1. Uvod

This manual provides essential instructions for the safe and efficient operation of your Candy X-Range CMXG 30DS Microwave with Grill. Please read this manual thoroughly before using the appliance and keep it for future reference. This microwave features a 30-liter capacity, digital controls, 5 power levels, and 40 automatic programs, including a grill function and smart connectivity via the simply-Fi app.

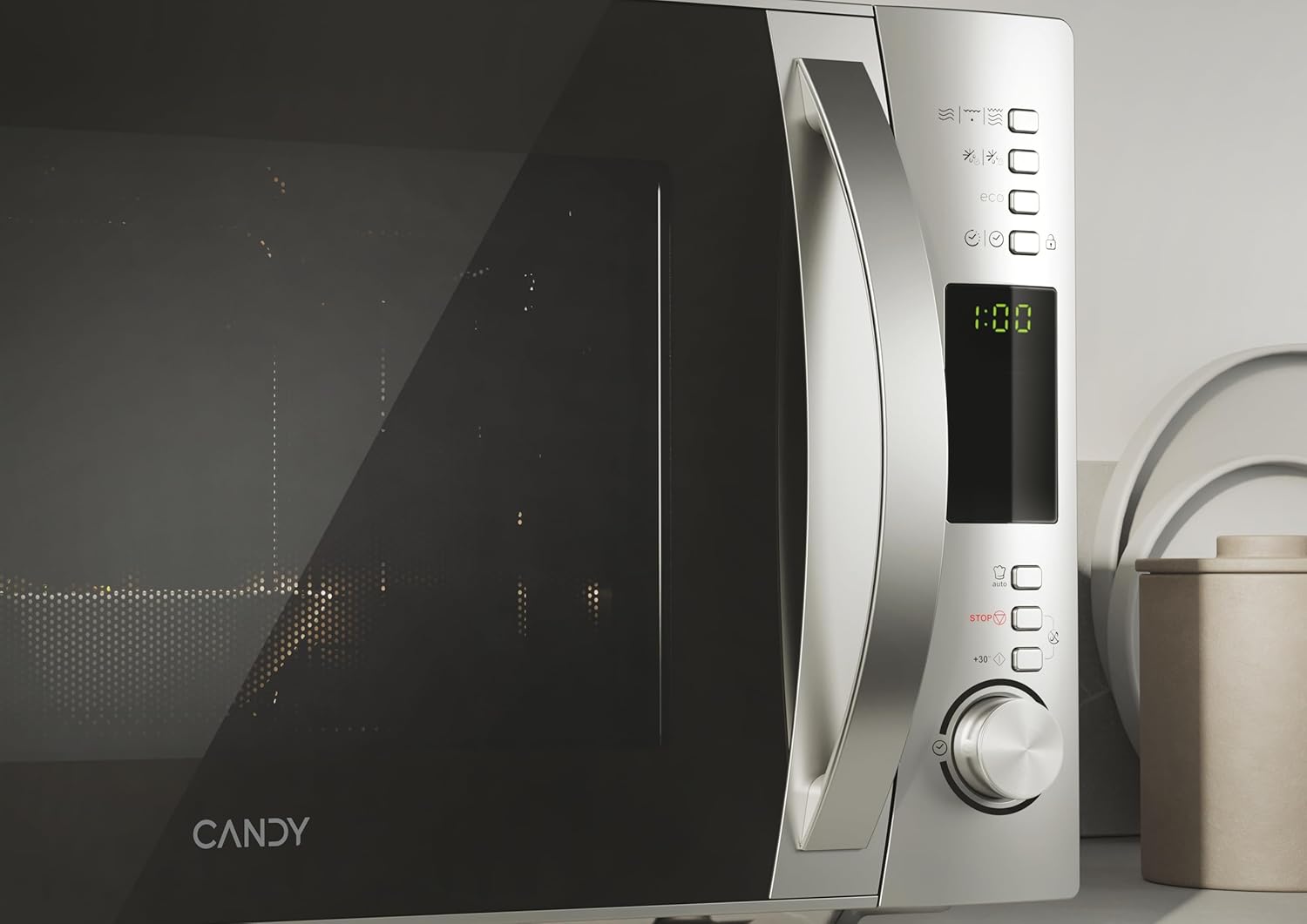

Front view of the Candy X-Range CMXG 30DS Microwave with Grill.

2. Sigurnosne informacije

Uvijek se pridržavajte osnovnih sigurnosnih mjera opreza prilikom korištenja električnih uređaja kako biste smanjili rizik od požara, strujnog udara, ozljeda osoba ili izloženosti prekomjernoj mikrovalnoj energiji.

• Pročitajte sva uputstva: Before operating the appliance, read all instructions in this manual.
• Pravilno uzemljenje: Osigurajte da je uređaj pravilno uzemljen u skladu s lokalnim električnim propisima.
• Do not operate if damaged: Never operate the microwave if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
• Avoid heating sealed containers: Liquids or other foods must not be heated in sealed containers as they are liable to explode.
• Child supervision: Neophodan je pažljiv nadzor kada uređaj koriste djeca ili u blizini djece.
• Microwave-safe utensils: Koristite samo pribor pogodan za mikrotalasne pećnice.
• Do not overcook food: Overcooking food can lead to fire.
• Redovno čišćenje: Clean the microwave regularly and remove any food deposits. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

3. Postavljanje i instalacija

3.1 Raspakivanje

Carefully remove all packaging materials from the microwave oven and its accessories. Check the oven for any damage, such as dents or a misaligned door. Do not install if the oven is damaged.

3.2 Postavljanje

Place the microwave oven on a stable, level surface that can support its weight and the heaviest food likely to be cooked in it. Ensure adequate ventilation by leaving a minimum of 10 cm (4 inches) clearance at the rear, 20 cm (8 inches) at the top, and 5 cm (2 inches) on each side. Do not block any ventilation openings.

3.3 Sklop gramofona

Place the turntable support ring in the center of the microwave cavity. Position the glass turntable plate securely on top of the support ring. Ensure it rotates freely.

Interior of the microwave with the turntable and grill rack.

3.4 Priključak za napajanje

Uključite kabel za napajanje u standardnu, uzemljenu električnu utičnicu. Osigurajte da je jačinatage odgovara naljepnici s karakteristikama na uređaju.

4. Uputstvo za upotrebu

Your Candy X-Range CMXG 30DS microwave offers various cooking functions. Familiarize yourself with the control panel for optimal use.

Digital control panel with various function buttons and a rotary knob.

4.1 Osnovno kuhanje u mikrovalnoj pećnici

1. Stavite hranu u posudu pogodnu za mikrovalnu pećnicu na okretni tanjir.
2. Čvrsto zatvorite vrata.
3. Select the desired power level (5 levels available) using the appropriate button or rotary knob.
4. Set the cooking time using the rotary knob or time buttons.
5. Pritisnite dugme Start za početak kuvanja.

4.2 Funkcija roštilja

Funkcija roštilja je idealna za prženje i hrskavost hrane.

1. Place food on the grill rack provided, then place the rack on the turntable.
2. Odaberite funkciju roštilja.
3. Podesite željeno vrijeme pečenja na roštilju.
4. Pritisnite Start.

4.3 Kombinirano kuhanje

Combine microwave and grill cooking for faster results with a crispy finish.

1. Stavite hranu u odgovarajuću posudu.
2. Select a Combination mode (e.g., Microwave + Grill).
3. Set the total cooking time.
4. Pritisnite Start.

4.4 Funkcija odmrzavanja

Defrost food efficiently by weight or time.

• Odmrzavanje po težini: Select the defrost by weight function, input the food's weight, and the oven will automatically calculate the defrosting time.
• Odmrzavanje po vremenu: Select the defrost by time function and manually set the desired defrosting duration.

4.5 Automatski programi

The microwave includes 40 pre-set automatic programs for various food types, including a dedicated baby & healthy menu. Simply select the desired program, and the oven will set the optimal cooking time and power level.

4.6 Brzo kuhanje

For quick heating, use the Express Cooking function. Press the corresponding button to start cooking immediately for a short duration (e.g., 30 seconds) at full power. Pressing it repeatedly adds more time.

4.7 Funkcija tajmera

The microwave can also be used as a standalone kitchen timer. Set the desired time, and it will count down without activating the microwave function.

4.8 Zaključavanje za djecu

Activate the Child Lock to prevent accidental operation by children. Refer to the control panel instructions for activating and deactivating this feature.

4.9 simply-Fi App Connectivity

Connect your microwave to the simply-Fi app on your smartphone for access to cooking tips, tricks, recipes, and food information.

A user interacting with the simply-Fi app on a smartphone, demonstrating smart control over the microwave.

4.10 Eko funkcija

The Eco function allows you to turn off the digital display when the microwave is not in use, contributing to energy saving.

5. Održavanje

Redovno čišćenje i održavanje osigurat će dugotrajnost i optimalne performanse vaše mikrovalne pećnice.

• Čišćenje unutrašnjosti: Nakon svake upotrebe, obrišite unutrašnju šupljinu sredstvom za čišćenje.amp cloth and mild detergent. For stubborn stains, a microwave-safe cleaner can be used. Ensure the interior is dry before closing the door.
• Eksterijerno čišćenje: Očistite vanjske površine mekom,amp cloth. Do not use abrasive cleaners or harsh chemicals, as these can damage the stainless steel finish.
• Turntable and Support Ring: Stakleni okretni tanjir i njegov potporni prsten mogu se ukloniti radi čišćenja. Operite ih u toploj vodi sa sapunom ili u mašini za pranje posuđa. Prije nego što ih vratite u pećnicu, provjerite da li su potpuno suhi.
• Brtve za vrata: Keep the door seals clean to ensure a proper seal during operation.

6. Otkrivanje problema

Ako naiđete na bilo kakve probleme s mikrovalnom pećnicom, pogledajte sljedeće uobičajene probleme i rješenja:

Ako problem i dalje postoji nakon isprobavanja ovih rješenja, obratite se korisničkoj podršci.

7. Specifikacije

• Brand: CANDY
• Naziv modela: Candy X-Range CMXG 30DS
• Broj modela: CMXG30DS
• Kapacitet: 30 litara
• Snaga mikrovalne pećnice: 900 Watts
• Nivoi snage: 5
• Vrsta kontrole: Digital, Buttons
• Prečnik gramofona: 31.5 cm
• Materijal: Nehrđajući čelik (unutrašnjost i vanjština)
• Dimenzije (Dubina x Širina x Visina): 43.5 cm x 52 cm x 32.6 cm
• Težina: 16.1 kilograma
• Programi: 40 Automatski programi
• Posebne karakteristike: Control Panel Lock, Automatic Cooking, Defrost, Eco Mode, Programmable, Timer Function, simply-Fi App Connectivity.

8. Garancija i podrška

8.1 Informacije o garanciji

This Candy X-Range CMXG 30DS microwave oven comes with a 3 godine garancije from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal household use.

8.2 Korisnička podrška

For technical assistance, spare parts, or any questions regarding your appliance, please contact Candy customer service or your retailer. Refer to the contact information provided in your purchase documentation or on the official Candy website.
