Sauter SPI6467B Induction Hob User Manual

1. Uvod

This manual provides essential information for the safe and efficient use of your Sauter SPI6467B Induction Hob. Please read these instructions carefully before installation and use, and keep them for future reference. Proper installation, operation, and maintenance are crucial for optimal performance and safety.

2. Sigurnosne informacije

Vaša sigurnost i sigurnost drugih su najvažnija. Molimo vas da se pridržavate svih sigurnosnih upozorenja i mjera opreza.

Opća sigurnost

• Osigurajte da uređaj instalira kvalifikovani tehničar u skladu s lokalnim propisima.
• Do not operate the hob if the glass ceramic surface is cracked or broken. Disconnect it from the power supply immediately.
• Držite djecu dalje od uređaja tokom rada i dok se hladi.
• Ne skladištite zapaljive materijale na ili u blizini ploče za kuhanje.
• Koristite samo posuđe kompatibilno s indukcijom.
• Avoid placing metallic objects such as knives, forks, spoons, and lids on the hob surface, as they can become hot.
• Ne dodirujte vruće površine. Koristite rukavice za pećnicu ili držače za lonce.
• Uvijek isključite zone za kuhanje nakon upotrebe.

Električna sigurnost

• The appliance must be connected to a suitable electrical supply (240 Volt, 32A circuit recommended).
• Ensure the electrical connection is easily accessible after installation.
• Ako je kabel za napajanje oštećen, mora ga zamijeniti proizvođač, njegov serviser ili slično kvalifikovane osobe kako bi se izbjegla opasnost.

3. Proizvod je gotovview

The Sauter SPI6467B is a 3-zone induction hob designed for efficient and flexible cooking. It features a black glass ceramic surface with touch controls.

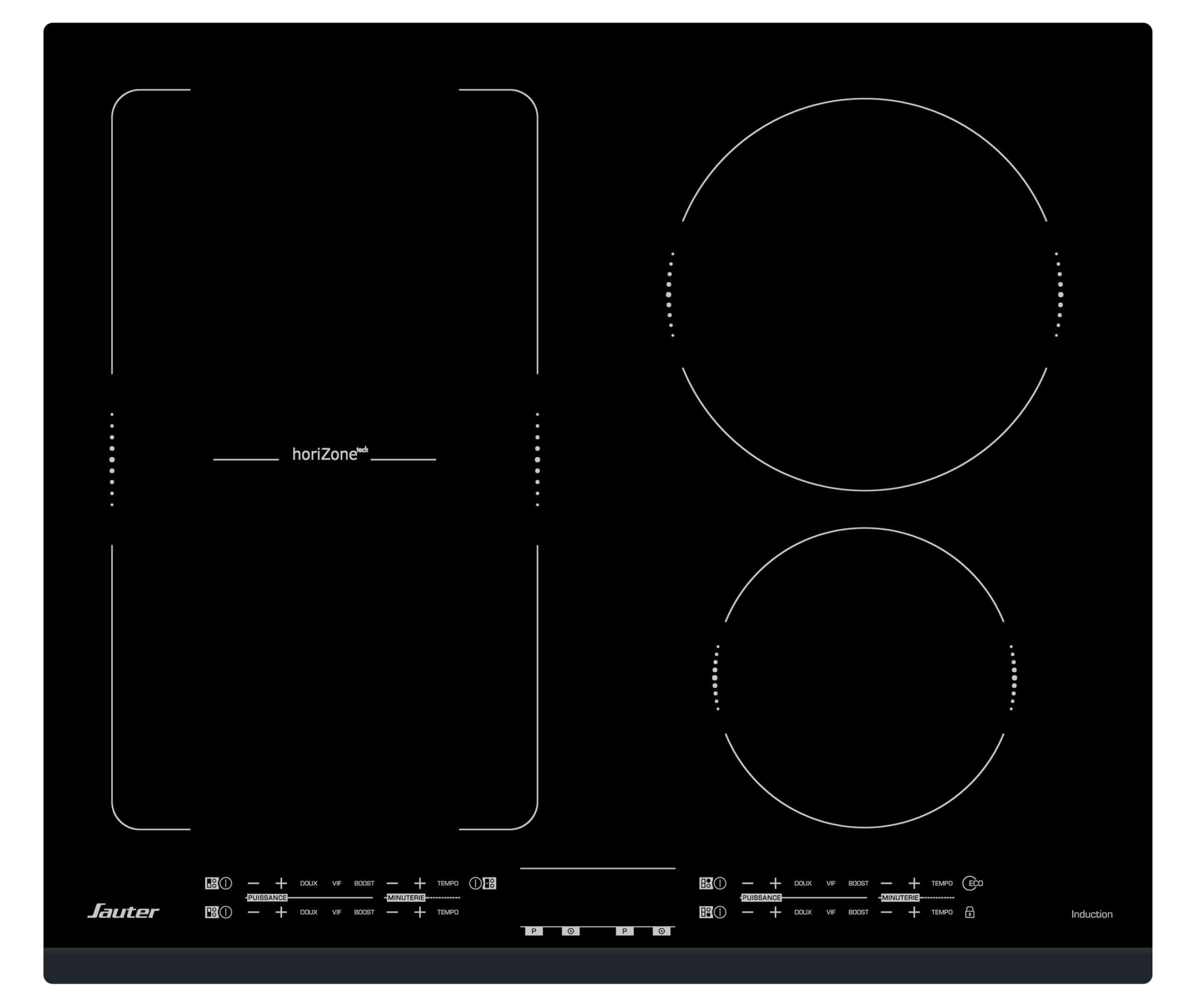

Slika 3.1: Vrh view of the Sauter SPI6467B Induction Hob.

Control Panel

The hob features a touch control panel for each cooking zone, allowing precise power adjustments and timer settings.

Slika 3.2: Detaljno view of the touch control panel for the induction hob. Each zone has independent power and timer controls, along with boost and flexible zone options.

Cooking Zones

• Ukupno zona: 3 induction cooking zones.
• Flexible Zone (Horizone): One large flexible zone (4000 W) that can accommodate various cookware sizes, including fish kettles or multiple smaller pots. This zone can be used as two independent cooking areas.
• Standard Zones: Two additional zones, 16 cm and 21 cm in diameter.

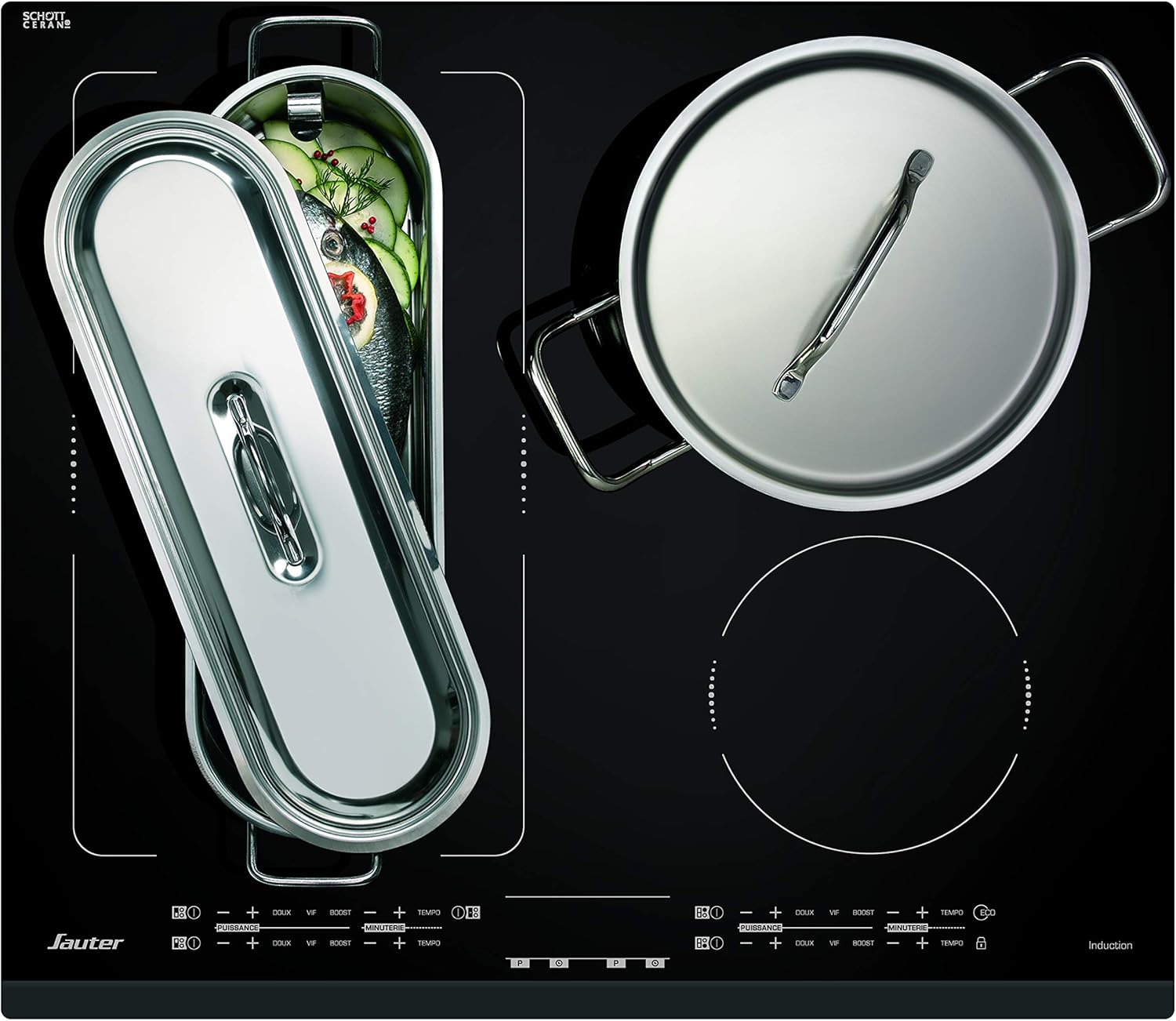

Figure 3.3: The induction hob in use, showcasing the flexible cooking zone accommodating a large rectangular pot and a round pot.

4. Postavljanje i instalacija

The Sauter SPI6467B is a drop-in induction hob designed for seamless integration into your kitchen countertop. Professional installation is highly recommended.

Ugradne dimenzije

• Dimenzije izreza: 56 cm (width) x 49 cm (depth).
• Ukupne dimenzije ploče za kuhanje: 60 cm (width) x 51 cm (depth).
• Dimenzije proizvoda (D x Š x V): 5.2D x 60W x 55H centimeters.

Figure 4.1: Technical diagram illustrating the required cut-out dimensions (560x490 mm) for countertop installation and overall hob dimensions (580x510 mm).

Električna veza

• Ploča za kuhanje zahtijeva žičani električni priključak.
• A dedicated 32A circuit is necessary for proper operation. A 16A circuit will not be sufficient.
• Ensure the electrical connection point is accessible for maintenance.

Ventilacija

Adequate ventilation is crucial for the induction hob's performance and longevity. Ensure there is sufficient space between the hob and any underlying oven or cabinetry. Do not obstruct the air outlet at the front of the hob.

5. Uputstvo za upotrebu

The Sauter SPI6467B Induction Hob offers intuitive touch controls for precise cooking.

Uključivanje/isključivanje

• To turn on: Touch the main power symbol.
• To turn off: Touch and hold the main power symbol until the hob switches off.

Odabir zone za kuhanje i podešavanje snage

• Postavite posuđe kompatibilno s indukcijom na željenu zonu za kuhanje.
• Select the zone by touching its corresponding control.
• Adjust the power level using the '+' and '-' touch controls. The hob offers 14 power positions.

Boost Funkcija

For rapid heating, activate the Boost function for a selected zone. This provides maximum power for a short period. Touch the 'BOOST' control for the desired zone.

Funkcija tajmera

Each cooking zone has an independent timer. To set the timer:

1. Odaberite zonu za kuvanje.
2. Touch the 'TIMER' control.
3. Adjust the desired cooking time using the '+' and '-' controls.
4. The zone will automatically switch off once the set time has elapsed.

Flexible Zone (Horizone)

The large flexible zone offers modularity, allowing you to combine two heating elements into one large cooking area. This is ideal for oversized pots or multiple smaller dishes. The system ensures optimal heat distribution across the entire area.

6. Održavanje i čišćenje

Redovno čišćenje i održavanje osigurat će dugotrajnost i optimalne performanse vaše indukcijske ploče za kuhanje.

Dnevno čišćenje

• Nakon svake upotrebe, ostavite ploču za kuhanje da se ohladi.
• Obrišite staklokeramičku površinu oglasomamp krpu i malu količinu blagog deterdženta za posuđe.
• Rinse thoroughly and dry with a clean, soft cloth to prevent water spots.

Uklanjanje tvrdokornih mrlja

• For burnt-on food or stubborn stains, use a specialized ceramic hob scraper.
• Apply a ceramic hob cleaner and rub gently with a non-abrasive sponge.
• Never use abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the surface.

Opća njega

• Izbjegavajte ispuštanje teških ili oštrih predmeta na površinu ploče za kuhanje.
• Ne gurajte posuđe s hrapavim dnom po površini, jer to može uzrokovati ogrebotine.

7. Otkrivanje problema

Prije nego što kontaktirate korisničku podršku, pogledajte sljedeće uobičajene probleme i rješenja.

Hob Not Turning On

• Provjerite napajanje: Ensure the hob is properly connected to the electrical outlet and the circuit breaker has not tripped.
• Kontrolna ploča zaključana: Some models have a child lock feature. Refer to the operating instructions to unlock the control panel.

Cooking Zone Not Heating

• Cookware compatibility: Ensure you are using induction-compatible cookware with a magnetic base.
• Veličina posuđa: The base of the cookware must cover a sufficient portion of the cooking zone.
• Zaštita od pregrijavanja: The zone may have temporarily shut off due to overheating. Allow it to cool down.

Neuobičajeni zvukovi tokom rada

• Zujanje/Zujanje: This is normal for induction hobs and is caused by the vibration of the cookware base.
• Klikom na: This can occur when the hob is regulating power levels.

Kodovi grešaka

If an error code appears on the display, consult the full product manual or contact customer support with the specific code.

8. Specifikacije

9. Garancija i podrška

Sauter is committed to quality and customer satisfaction.

Manufacturing and Origin

The Sauter SPI6467B Induction Hob is manufactured in France, reflecting a commitment to quality and European standards. Sauter has been producing appliances since 2011, with factories located in Orleans and Vendôme.

Figure 9.1: Illustration highlighting the product's origin in France, with a commitment to 15 years of spare parts availability and repairability.

Repairability and Parts Availability

Sauter ensures the availability of spare parts for 15 years, supporting the long-term repairability of your appliance.

Korisnička podrška

For technical assistance, warranty claims, or to inquire about spare parts, please contact your local Sauter service center or authorized dealer. Refer to the official Sauter webstranica za kontakt informacije.
