KitchenAid KFP0722CU Uputstvo za upotrebu multipraktika za 7 šolja

Uvod

Thank you for choosing the KitchenAid KFP0722CU 7-Cup Food Processor with Exact Slice System. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read all instructions carefully before first use and retain this manual for future reference.

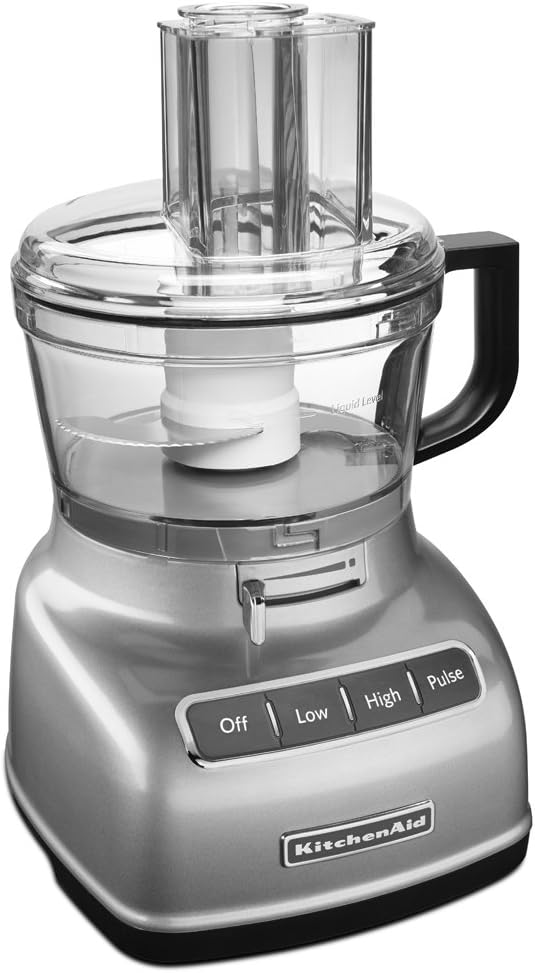

Image: The KitchenAid KFP0722CU 7-Cup Food Processor in Contour Silver, fully assembled.

Važne informacije o sigurnosti

Prilikom korištenja električnih uređaja uvijek se treba pridržavati osnovnih sigurnosnih mjera opreza kako bi se smanjio rizik od požara, električnog udara i/ili ozljeda osoba, uključujući sljedeće:

• Pročitajte sva uputstva.
• Ne uranjajte bazu motora u vodu ili drugu tečnost.
• Avoid contact with moving parts. Keep hands and utensils away from cutting blades during operation to prevent severe personal injury and/or damage to the food processor.
• Uvijek isključite utikač iz utičnice kada nije u upotrebi, prije stavljanja ili skidanja dijelova i prije čišćenja.
• Nemojte koristiti uređaj s oštećenim kablom ili utikačem, ili nakon što uređaj pokvari rad ili je pao ili oštećen na bilo koji način.
• Ovaj proizvod sadrži kemikalije za koje je u državi Kalifornija poznato da uzrokuju rak i urođene mane ili druge reproduktivne štete.

Dijelovi i karakteristike

Familiarize yourself with the components of your KitchenAid Food Processor:

• Baza motora: Houses the motor and control panel (Off, Low, High, Pulse buttons).
• Radna zdjela: 7-cup capacity, clear polycarbonate bowl for processing ingredients.
• Work Bowl Lid: Clear lid with a 2-in-1 feed tube and Ultra Tight Seal to prevent spills.
• 2-in-1 Wide Mouth Feed Tube: Allows for processing various sizes of ingredients.
• Prodavač hrane: Koristi se za vođenje sastojaka kroz cijev za punjenje.
• Višenamjenska oštrica: Za sjeckanje, mljevenje, miješanje i pasiranje.
• Adjustable Stainless Steel Slicing Disc: Features the Exact Slice System for precise slicing thickness.
• Reverzibilni disk za usitnjavanje: Za fino ili grubo usitnjavanje.

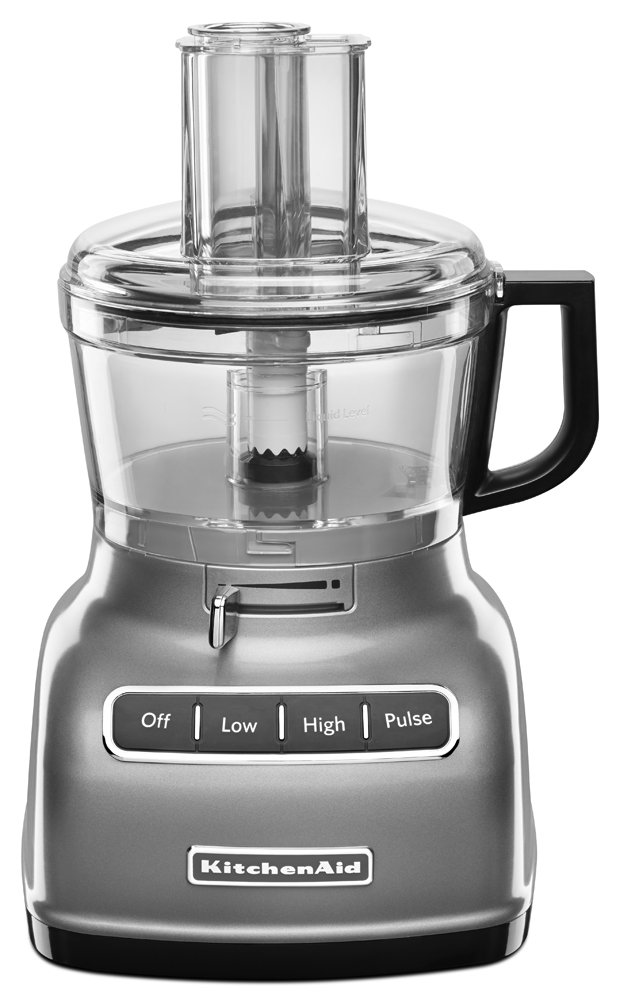

Image: The KitchenAid KFP0722CU Food Processor showing the work bowl, lid, and feed tube.

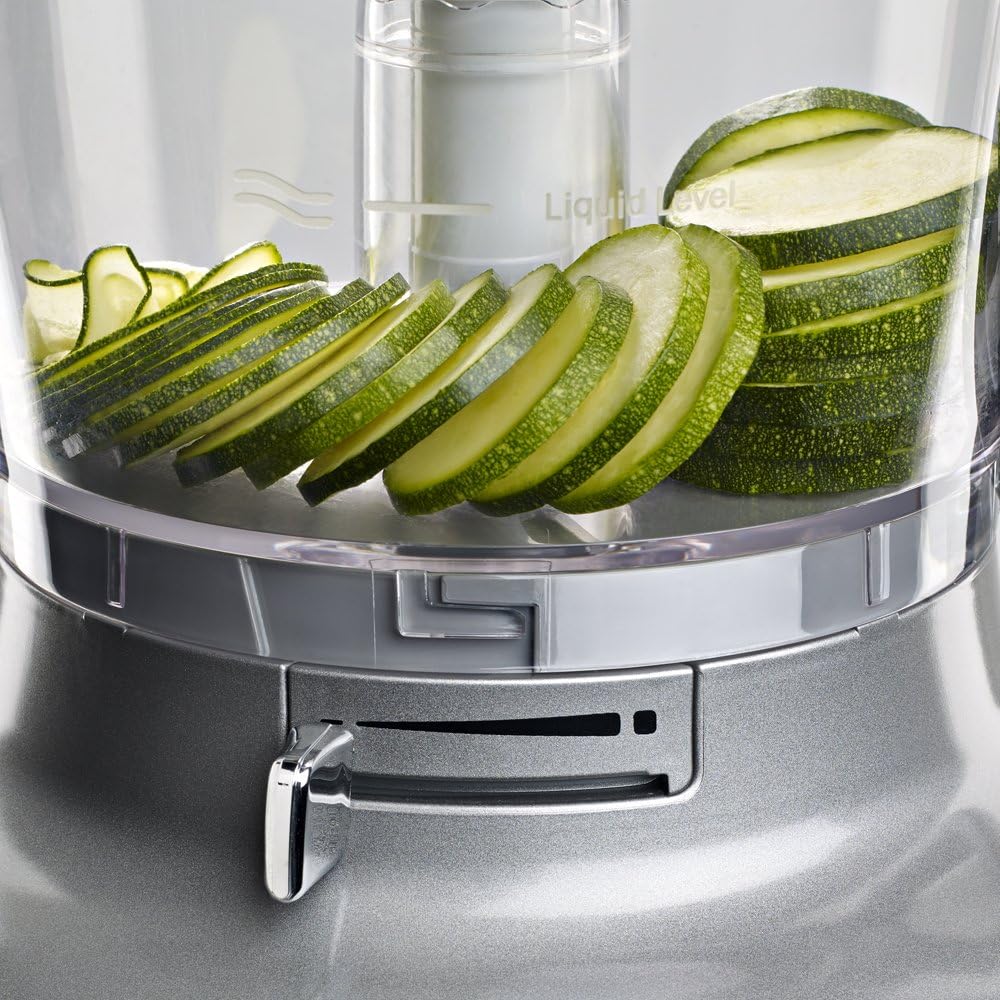

Slika: Krupni plan view of the adjustable slicing lever on the food processor, with perfectly sliced zucchini in the work bowl, demonstrating the Exact Slice System.

Postavljanje i montaža

Before assembling, ensure all parts are clean. Refer to the 'Care and Cleaning' section for initial cleaning instructions.

1. Place Work Bowl: Position the work bowl onto the motor base. Align the raised locking element on the work bowl with the indentation on the base. Turn the work bowl counter-clockwise until it locks securely into place.
2. Install Accessory: Select the desired blade or disc (e.g., Multipurpose Blade, Slicing Disc). Carefully place it onto the drive adapter in the center of the work bowl. For the Multipurpose Blade, press down on the top of the blade to ensure it locks into place.
3. Pričvrstite poklopac: Place the work bowl lid onto the work bowl. Ensure the 2-in-1 feed tube is positioned to the left of the handle. Turn the lid clockwise until it locks securely into place.
4. Umetnite potiskivač hrane: Fit the food pusher into the feed tube opening on the lid.

Važno: The food processor will not operate unless the work bowl and lid are correctly locked into position.

Video vodič za montažu

Video: A detailed guide on how to assemble your KitchenAid Food Processor, demonstrating the correct placement of the work bowl, blades, lid, and food pusher for models KFP0711, KFP0722, and KFP1466.

Uputstvo za upotrebu

Once assembled, your food processor is ready for use. Ensure the appliance is plugged into a grounded outlet.

• Dodavanje sastojaka: Place ingredients into the work bowl or feed them through the 2-in-1 wide mouth feed tube while the processor is running. Use the food pusher to guide ingredients.
• Kontrolna tabla: The control panel features 'Off', 'Low', 'High', and 'Pulse' buttons.
  • Niska/Visoka: Press 'Low' or 'High' for continuous operation at the selected speed.
  • puls: Press and hold 'Pulse' for short bursts of power. Release to stop. This is ideal for chopping and controlling texture.
  • Isključeno: Press 'Off' to stop the appliance.
• Exact Slice System: For models with the Exact Slice System, adjust the external lever to select your desired slicing thickness before processing.

Njega i čišćenje

Proper cleaning ensures the longevity and performance of your food processor. Always unplug the appliance before cleaning.

• Dijelovi koji se mogu prati u mašini za suđe: The work bowl, lid, food pusher, and all blades/discs are top-rack dishwasher safe.
• Ručno pranje: For best results and to prolong the life of plastic components, hand washing with warm, soapy water is recommended. Use caution when handling sharp blades.
• Baza motora: Očistite bazu motora oglasomamp tkanina. Ne uranjajte bazu motora u vodu ili druge tečnosti.

Slika: Pogled odozgo prema dolje view of the disassembled KitchenAid Food Processor components, including the motor base, work bowl, lid, and various blades/discs, ready for cleaning.

Rješavanje problema

If your food processor encounters issues, refer to the common troubleshooting tips below.

Food Processor Won't Start

• Provjerite sklop: Ensure the work bowl is correctly placed and twisted counter-clockwise until it locks into the motor base.
• Verify Lid Lock: Confirm that the work bowl lid is securely placed and twisted clockwise until it locks into the work bowl. The food processor has safety interlocks that prevent operation if components are not properly aligned and locked.
• Priključak za napajanje: Make sure the appliance is securely plugged into a functional electrical outlet.

Video vodič za rješavanje problema

Video: This video demonstrates common troubleshooting steps if your KitchenAid Food Processor does not start, focusing on ensuring the work bowl and lid are correctly locked.

Specifikacije

Garancija i podrška

Your KitchenAid KFP0722CU Food Processor is backed by a comprehensive warranty.

Informacije o garanciji

Ovaj proizvod dolazi sa a 1 Year Hassle Free Replacement Warranty. For detailed terms and conditions, please refer to the warranty card included with your product or visit the official KitchenAid website.

Image: A badge indicating the KitchenAid 1 Year Limited Warranty.

Korisnička podrška

Should you require assistance, have questions about your product, or need to claim warranty service, please contact KitchenAid Customer Service. Contact information can typically be found on the KitchenAid webweb-mjestu ili u ambalaži vašeg proizvoda.
