1. Uvod
This manual provides detailed instructions for the safe and effective use of the PeakTech P 4980 Dual Laser Pointer IR Thermometer. This device is designed for non-contact temperature measurements across a wide range, from -50 to +800 °C. It features dual laser pointers for precise targeting of the measurement area. Please read this manual thoroughly before operating the device and keep it for future reference.

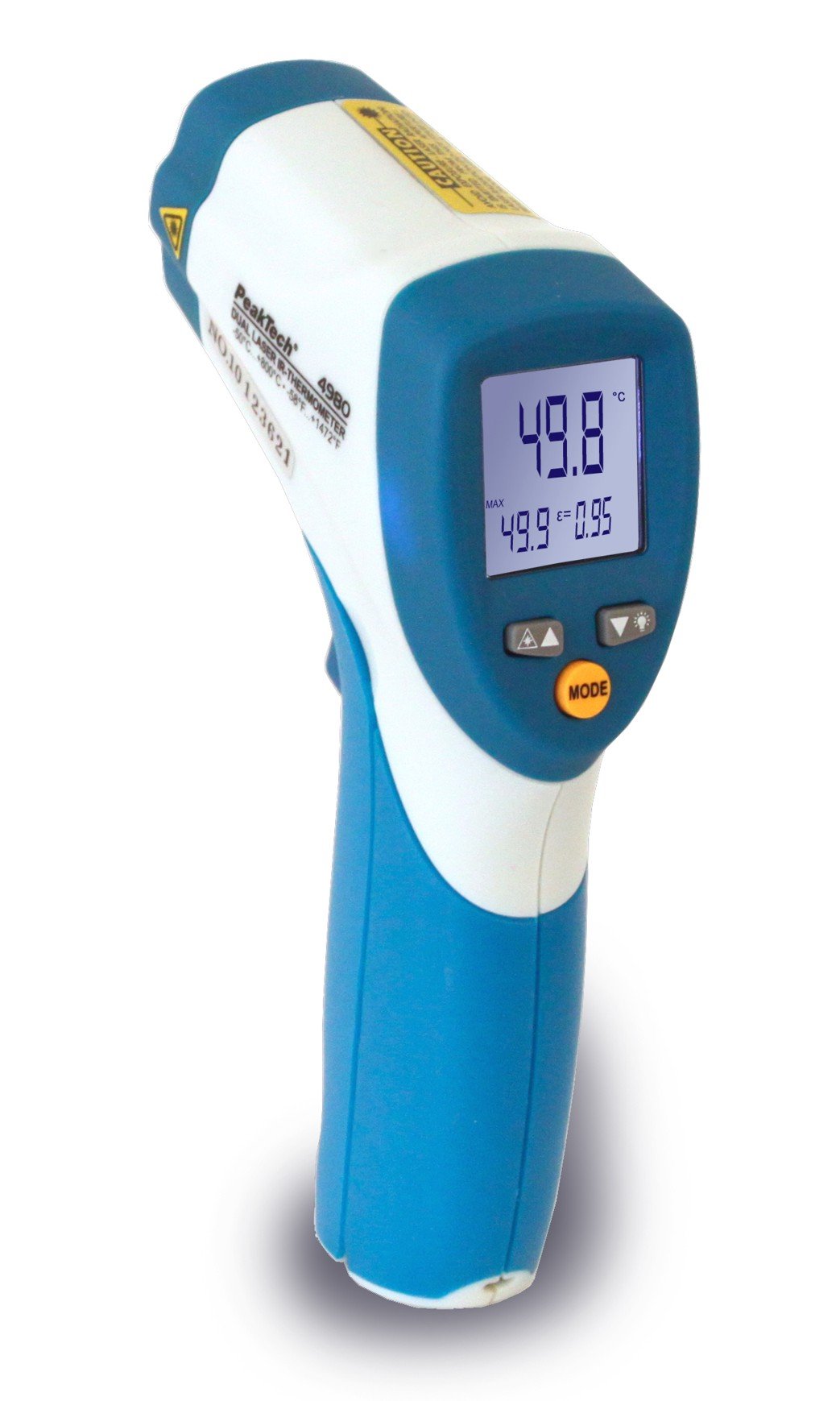

Image 1.1: The PeakTech P 4980 Dual Laser Pointer IR Thermometer, showing its ergonomic design and display.
2. Sigurnosne informacije
Always observe the following safety precautions to prevent injury and avoid damage to the device:
- Laserska sigurnost: This device uses Class 2 lasers. Do not stare directly into the laser beam or direct it at people or animals. Avoid direct eye exposure.
- Radno okruženje: Do not use the thermometer in environments with explosive gases, vapor, or dust.
- Temperaturne granice: Do not expose the device to extreme temperatures outside its specified operating range.
- Održavanje: Only qualified personnel should perform repairs. Do not attempt to modify the device.
- čišćenje: Za čišćenje koristite meku, suhu krpu. Ne koristite abrazivna sredstva za čišćenje ili rastvarače.
- Rukovanje baterijom: Ensure correct battery polarity. Remove batteries if the device will not be used for an extended period. Dispose of batteries according to local regulations.
3. Značajke proizvoda
The PeakTech P 4980 offers advanced features for accurate and convenient temperature measurement:
- Dvostruki laserski pokazivači: Provides precise targeting, indicating the exact measurement spot.
- Široki temperaturni raspon: Measures temperatures from -50 °C to +800 °C (-58 °F to +1472 °F).
- Beskontaktno mjerenje: Safely measure hot, hazardous, or hard-to-reach surfaces.
- LCD ekran: Clear digital display for easy reading of temperature values.
- Podesiva emisivnost: Allows for accurate measurements on various surface types (refer to operating instructions for details).
- Funkcija zadržavanja podataka: Zamrzava prikazano očitanje radi lakšeg snimanja.
- Pozadinsko osvjetljenje: Improves visibility in dimly lit conditions.
- Automatsko isključivanje: Štedi vijek trajanja baterije.
4. Podešavanje
4.1 Instalacija baterije
- Locate the battery compartment cover on the handle of the device.
- Otvorite poklopac povlačenjem ili otključavanjem.
- Insert the included battery, ensuring correct polarity (+ and - terminals).
- Čvrsto zatvorite poklopac odeljka za baterije.
4.2 Uključivanje/isključivanje
- To power on the device, press the trigger. The display will illuminate.
- Uređaj će se automatski isključiti nakon određenog perioda neaktivnosti kako bi se uštedjelo trajanje baterije.
5. Uputstvo za upotrebu
5.1 Mjerenje
- Usmjerite termometar prema ciljanoj površini.
- Press and hold the trigger. The dual laser pointers will activate, indicating the measurement area.
- Izmjerena temperatura će biti prikazana na LCD ekranu.
- Release the trigger to hold the reading on the display (Data Hold function).
5.2 Distance-to-Spot Ratio
The accuracy of the measurement depends on the distance-to-spot ratio. Ensure the target area is larger than the measurement spot size at your chosen distance. The dual lasers help define this spot.
5.3 Podešavanje emisivnosti
Different materials emit infrared energy differently. For accurate readings, adjust the emissivity setting to match the surface being measured. Consult a standard emissivity table for common materials. The P 4980 allows adjustment via dedicated buttons (refer to device interface for specific controls).
5.4 Izbor jedinice (°C/°F)
To switch between Celsius (°C) and Fahrenheit (°F), locate the unit selection button (usually labeled '°C/°F' or similar) and press it. The display will change accordingly.
6. Održavanje
6.1 Čišćenje uređaja
- Obrišite uređaj casing s mekim, damp tkanina. Nemojte koristiti abrazivne materijale ili rastvarače.
- For the lens, use a soft cloth or cotton swab with a small amount of isopropyl alcohol.
6.2 Zamjena baterije
When the low battery indicator appears on the display, replace the battery as described in Section 4.1. Always use the specified battery type.
6.3 Skladištenje
Termometar čuvajte na hladnom i suhom mjestu, dalje od direktne sunčeve svjetlosti i ekstremnih temperatura. Izvadite baterije ako ga skladištite duži period.
7. Otkrivanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Uređaj se ne uključuje. | Prazna ili nepravilno instalirana baterija. | Provjerite polaritet baterija ili ih zamijenite novima. |
| Netačna očitavanja. | Incorrect emissivity setting; distance too far; lens dirty. | Adjust emissivity; move closer to target; clean lens. |
| Laser pointers not visible. | Laser function disabled (if applicable); bright ambient light. | Check laser activation button; use in less bright conditions. |
| Display shows 'ERR' or similar. | Measurement outside range; internal error. | Ensure target temperature is within -50 to +800 °C. If error persists, contact support. |
8. Specifikacije
| Feature | Specifikacija |
|---|---|
| Model | P 4980 |
| Temperaturni opseg | -50 °C do +800 °C (-58 °F do +1472 °F) |
| Rezolucija | 0.1 °C / 0.1 °F |
| Display Type | LCD |
| Posebna karakteristika | Non-contact, Dual Laser Pointer |
| Izvor napajanja | Napaja se baterijama |
| Uključene komponente | Baterija |
| Vanjski materijal | Plastika |
| Boja | Bijelo/plavo |
9. Garancija i podrška
9.1 Informacije o garanciji
This PeakTech product is backed by a 3-year manufacturer's warranty, ensuring quality and reliability. Please retain your proof of purchase for warranty claims.
9.2 Korisnička podrška
For technical assistance, troubleshooting, or warranty inquiries, please contact PeakTech customer support. Refer to the official PeakTech webnajnovije kontakt informacije potražite na web-mjestu ili pakiranju proizvoda.
