Philips SFL1342RH Rechargeable Headlamp Uputstvo za upotrebu

1. Uvod

Thank you for choosing the Philips SFL1342RH Rechargeable Headlamp. Ova glavaamp is designed for various outdoor activities, offering powerful illumination, multiple light modes, and a convenient sensor function. Its durable and lightweight construction makes it an ideal companion for camping, hiking, fishing, car repairs, and other outdoor adventures.

Ključne karakteristike:

• Super Bright and Durable: Utilizes super bright lamp beads and a large, deep lamp cup (74mm diameter, 45mm depth) for enhanced brightness and irradiation distance.
• Dugotrajna baterija: Equipped with a 1200 mAh 18650 lithium battery, providing up to 260 minutes of illumination on a full charge.
• 4 režima osvetljenja: Features Strong Light, Weak Light, Strobe, and SOS modes to suit different needs.
• 90° podesivi ugao: The illumination direction can be freely adjusted by 90 degrees.
• Funkcija senzora: Allows hands-free control of the light by simply waving a hand, ideal for situations where hands are wet or dirty.
• Lagan i udoban: Made from ABS material, weighing only 128g, making it resistant to drops, waterproof, and comfortable for extended wear.
• Punjenje tipa C: Supports fast and convenient charging via a Type-C port.

2. Sigurnosne informacije

Molimo pročitajte i razumite sva sigurnosna uputstva prije upotrebe ovog proizvoda. Nepoštivanje ovih uputstava može dovesti do strujnog udara, požara ili ozbiljnih povreda.

• Sigurnost oka: Do not look directly into the light beam or shine it directly into the eyes of others. The intense light can cause temporary vision impairment or permanent eye damage.
• Održavanje baterije:
  • Napunite glavuamp regularly, preferably before the battery is completely depleted, to prolong its lifespan.
  • Ne pokušavajte da zamenite unutrašnju bateriju.
  • Izbjegavajte izlaganje glaveamp to extreme temperatures (hot or cold) or direct sunlight for prolonged periods.
  • Keep away from flammable materials during charging.
• Otpornost na vodu: Headlamp is designed to be waterproof against light rain and splashes. Do not submerge it in water or expose it to heavy downpours for extended periods.
• djeca: Čuvati izvan dohvata djece. Ovo nije igračka.
• odlaganje: Proizvod i njegovu bateriju odložite odgovorno u skladu s lokalnim propisima.

3. Komponente proizvoda

The Philips SFL1342RH Headlamp consists of the main lamp unit, an adjustable elastic headband, and a Type-C charging port.

Image: Philips SFL1342RH Headlamp showing its main components.

Lightweight Design and Lamp Struktura:

Headlamp features a lightweight ABS body, weighing approximately 128g, ensuring comfort during prolonged use. The lamp head incorporates high-quality lamp beads and an enlarged light cup for optimal light output.

Slika: Ilustracija zaglavljaamp's lightweight body (128g) and comfortable fit.

Slika: Detaljna view od glaveamp's high-power lamp bead, high lens, and enlarged light cup for enhanced illumination.

4. Podešavanje

4.1 Početno punjenje

Prije prve upotrebe, potpuno napunite glavuamp. The device uses a Type-C charging port for quick and convenient power replenishment.

1. Spojite priloženi kabel za punjenje tipa C na slušaliceamppriključak za punjenje.
2. Drugi kraj kabla priključite na USB izvor napajanja (npr. adapter za zid, power bank, USB priključak računara).
3. Indikator punjenja će svijetliti crveno tokom punjenja, a zeleno kada se uređaj potpuno napuni.
4. It is recommended to charge the product before the battery is completely exhausted to maintain optimal battery life.

Image: Illustration of the 18650 lithium battery and its capacity, indicating long-lasting illumination.

Slika: Krupni plan glaveamp showing the Type-C charging port and charging status indicators (red for charging, green for full).

4.2 Podešavanje trake za glavu

The elastic headband is adjustable to ensure a comfortable and secure fit for various head sizes.

1. Stavite glavuamp na tvojoj glavi.
2. Adjust the elastic straps by pulling them through the buckles until the headlamp osjeća se udobno, ali ne previše stegnuto.
3. Ensure the strap is positioned to prevent sweat from dripping into your eyes and to keep the headlamp stable during activity.

Image: Depiction of the elastic, breathable headband and the 90-degree adjustable lamp head for versatile use.

5. Operacija

5.1 Uključivanje/isključivanje i odabir načina rada

Headlamp features a dual switch system for easy operation.

Image: Diagram illustrating the dual switch buttons (Power and Sensor) and their functions for mode selection.

1. Dugme za napajanje:
   • Pritisnite jednom za Jaka svetlost.
   • Pritisnite ponovo za Slabo svjetlo.
   • Dvaput kliknite za Strobe način rada.
   • Double-click again for SOS način rada.
   • Press and hold to turn off the headlamp.

5.2 Sensor Function

The sensor function allows for convenient hands-free control.

1. Dok je glavaamp is on, click the Prekidač senzora button to activate infrared detection.
2. Once activated, you can control the light by waving your hand in front of the sensor.
3. Wave once to turn the light on/off.

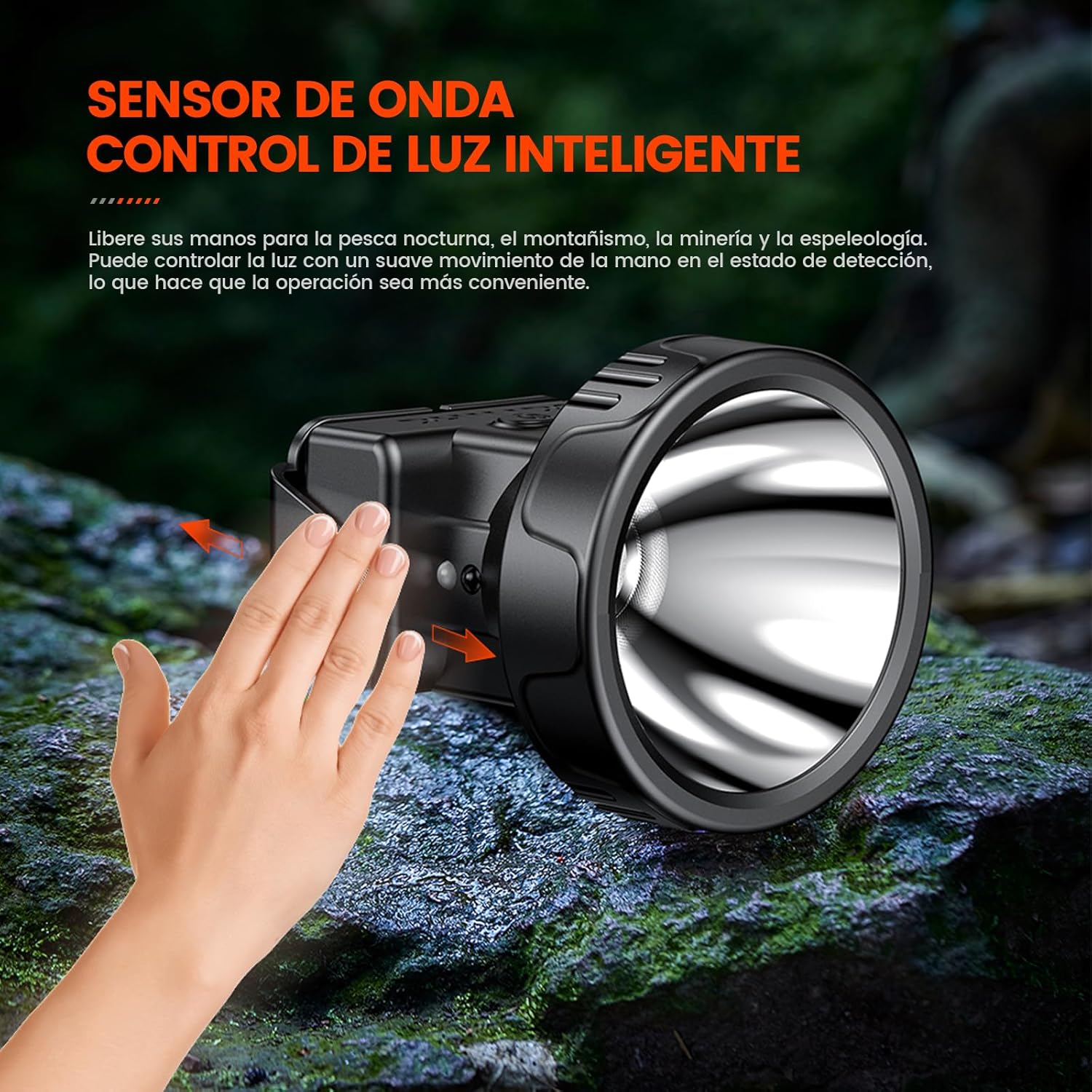

Slika: Ruka maše ispred glaveamp, demonstrating the intelligent wave sensor control for hands-free operation.

5.3 Podešavanje ugla

Headlamp's angle can be adjusted up to 90 degrees to direct light precisely where needed.

1. Gently tilt the lamp head up or down to achieve the desired illumination angle.
2. The mechanism is designed to hold the chosen angle securely.

Image: Illustration showing the headlamp's ability to adjust its angle by 90 degrees for flexible lighting.

5.4 Continuous Dimming

After turning on the headlamp, a long press on the power button will linearly adjust the brightness from dim to 100% bright. The adjustment can also be reversed.

1. Sa glavomamp on, press and hold the power button. The brightness will gradually increase or decrease.
2. Otpustite dugme kada se dostigne željeni nivo osvetljenosti.
3. A double flash indicates the end of the dimming range.

Image: Graphic demonstrating the continuous dimming function, allowing brightness adjustment from minimum to 100%.

5.5 High and Low Beam Comparison

Headlamp provides distinct high and low beam options for various lighting needs.

Image: Comparison of the headlamp's high beam and low beam illumination in an outdoor setting, highlighting its bright light source and clear vision.

6. Održavanje

6.1 Čišćenje

To ensure optimal performance and longevity, keep your headlamp čist.

• Obrišite vanjski dio glaveamp sa mekim, damp tkanina.
• Ne koristite abrazivna sredstva za čišćenje ili rastvarače, jer mogu oštetiti površinu.
• Provjerite je li poklopac priključka za punjenje sigurno zatvoren kako biste spriječili ulazak prašine i vlage.

6.2 Skladištenje

When not in use for extended periods, store the headlamp ispravno.

• Čuvati na hladnom i suvom mestu dalje od direktne sunčeve svetlosti i ekstremnih temperatura.
• Charge the battery every 3-6 months to prevent deep discharge and maintain battery health.

6.3 Vodootpornost

Headlamp is designed with a waterproof rating to withstand various weather conditions.

Slika: Zaglavljeamp shown in a wet environment, illustrating its waterproof capability against wind and rain.

7. Otkrivanje problema

If you encounter issues with your Philips SFL1342RH Headlamp, pogledajte sljedeće uobičajene probleme i rješenja:

8. Specifikacije

9. Garancija i podrška

Za informacije o garanciji i korisničkoj podršci, pogledajte dokumentaciju koja je priložena uz vašu kupovinu ili posjetite službenu Philips stranicu webSačuvajte dokaz o kupovini za eventualne reklamacije.
