ALM FL242 Metal Blade Instruction Manual

1. Uvod

This manual provides essential information for the safe and effective use of your ALM FL242 Metal Blade. This blade is designed as a replacement part for specific Flymo lawnmower models, ensuring an ideal cutting edge and long-lasting performance. Please read these instructions carefully before installation and operation.

The ALM FL242 Metal Blade is suitable for the following Flymo lawnmower models:

• Hovervac 35
• Turbo Compact 350
• Turbo Compact Vision 350
• Turbolite 350
• Vision Compact 350
• 350 Plus

2. Sigurnosne informacije

Always prioritize safety when handling and installing the lawnmower blade. Failure to follow safety instructions can result in serious injury.

• Isključite napajanje: Always ensure the lawnmower is unplugged from the power source or the battery is removed before attempting any installation or maintenance.
• Nosite zaštitnu opremu: Wear heavy-duty gloves and eye protection when handling the blade to prevent cuts and injuries.
• Oštre ivice: The blade has sharp edges. Handle with extreme care.
• Sigurna instalacija: Ensure the blade is securely fastened according to your lawnmower's specific instructions to prevent it from detaching during operation.
• Redovno pregledavajte: Before each use, inspect the blade for damage, cracks, or excessive wear. Replace immediately if any damage is found.

3. Sadržaj paketa

Prilikom otvaranja pakovanja provjerite da li su sve komponente prisutne i neoštećene.

• 1 x ALM FL242 Metal Blade (35cm)

4. Podešavanje / Instalacija

Follow these general steps for replacing your lawnmower blade. Always refer to your specific lawnmower's instruction manual for detailed, model-specific blade replacement procedures.

1. Pripremite kosilicu: Disconnect the lawnmower from its power source (unplug electric models, remove spark plug wire for petrol models).
2. Position the Lawnmower: Carefully tilt the lawnmower onto its side, ensuring the carburetor (for petrol models) is facing upwards to prevent fuel leakage.
3. Osigurajte oštricu: Use a block of wood or a specialized blade-holding tool to prevent the old blade from turning while you loosen the retaining nut/bolt.
4. Uklonite staru oštricu: Using an appropriate wrench, loosen and remove the blade retaining nut/bolt. Carefully remove the old blade and any washers or spacers. Note their orientation.
5. Instalirajte novu oštricu: Position the new ALM FL242 blade onto the blade boss, ensuring it is correctly aligned with any locating pins or grooves. The cutting edge should face the direction of rotation. Reinstall any washers or spacers in their original orientation.
6. Zategnite sigurno: Reinstall the retaining nut/bolt and tighten it firmly with the wrench. Ensure it is torqued to the manufacturer's specifications if available in your lawnmower manual.
7. Konačna provjera: Rotate the blade by hand to ensure it spins freely and is balanced. Reconnect the power source.

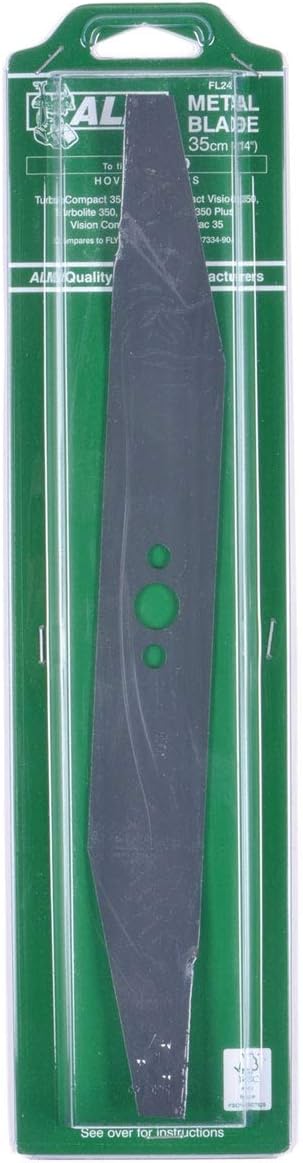

Image showing the ALM FL242 Metal Blade, 35cm (14 inch), in its clear plastic retail packaging. The blade is dark grey with three green circular holes for mounting.

5. Uputstvo za upotrebu

Once the ALM FL242 Metal Blade is correctly installed, operate your lawnmower according to its original manufacturer's instructions. The new blade will provide an efficient and clean cut. Always ensure the cutting area is clear of debris before starting the lawnmower.

6. Održavanje

Proper maintenance of your ALM FL242 Metal Blade will extend its lifespan and ensure optimal cutting performance.

• čišćenje: After each use, disconnect the lawnmower from power and carefully clean any grass clippings and debris from the blade and the underside of the mower deck. This prevents buildup that can affect performance and balance.
• inspekcija: Regularly inspect the blade for signs of wear, nicks, bends, or cracks. Even minor damage can lead to an unbalanced blade, causing excessive vibration and poor cutting quality.
• Zamjena: Replace the blade if it becomes dull, bent, cracked, or excessively worn. A dull blade tears grass rather than cutting it cleanly, which can harm your lawn.
• Skladištenje: When storing the lawnmower for extended periods, ensure the blade is clean and dry to prevent rust.

7. Otkrivanje problema

If you encounter issues after installing the new blade, consider the following common troubleshooting steps:

• Neravnomjeran rez: Ensure the blade is installed correctly and securely. Check for any debris caught under the blade or deck. If the blade is bent or damaged, it will need replacement.
• Pretjerane vibracije: This often indicates an unbalanced blade. Check if the blade is securely tightened. If the blade has hit a hard object, it might be bent or damaged, requiring replacement.
• Lawnmower Not Starting (after blade change): Double-check that all power connections are re-established (e.g., spark plug wire reconnected, battery inserted, power cord plugged in).

8. Specifikacije

9. Garancija i podrška

This ALM product is manufactured to high-quality standards. For information regarding warranty coverage or technical support, please refer to the packaging or contact your retailer. Keep your proof of purchase for any warranty claims.
